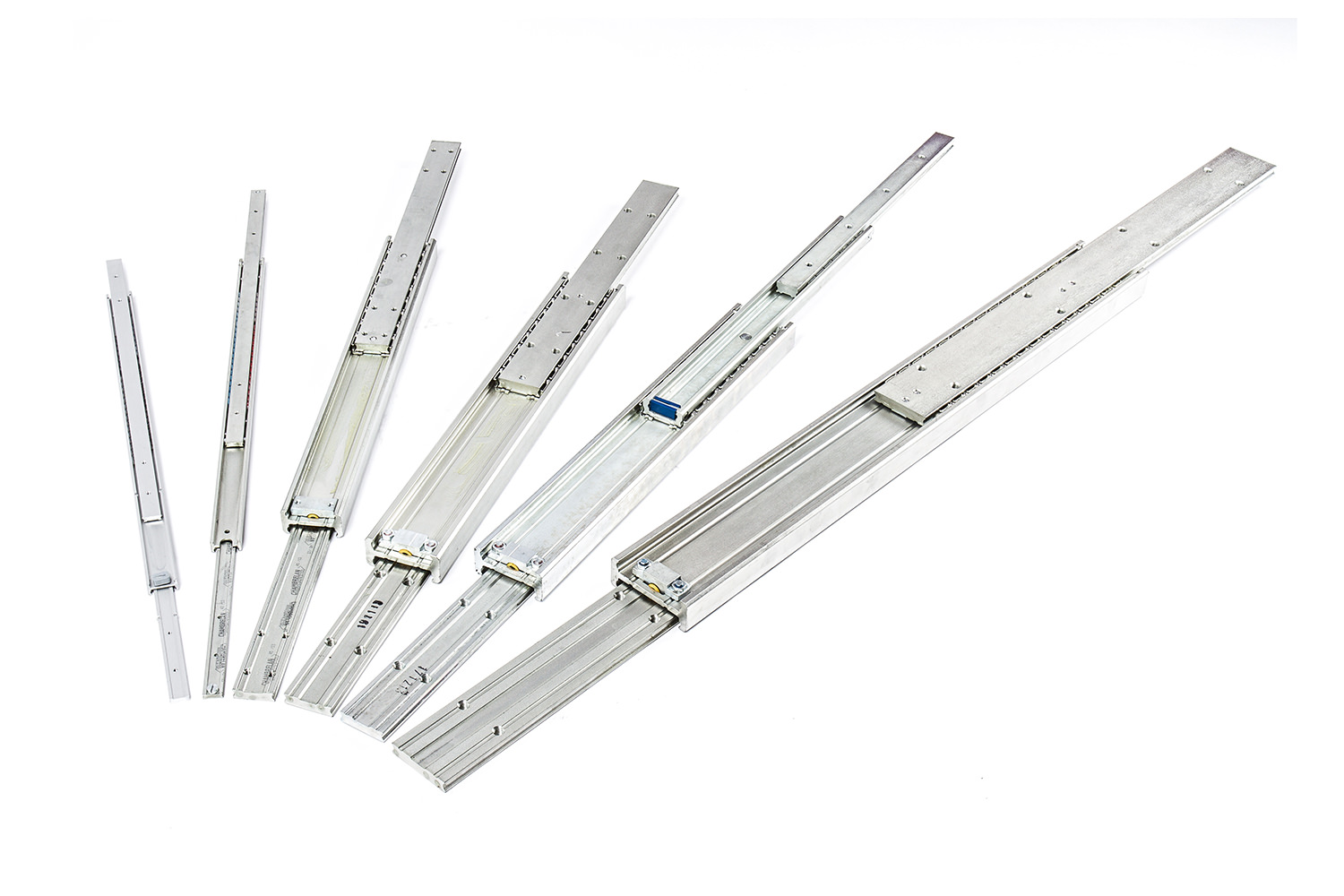

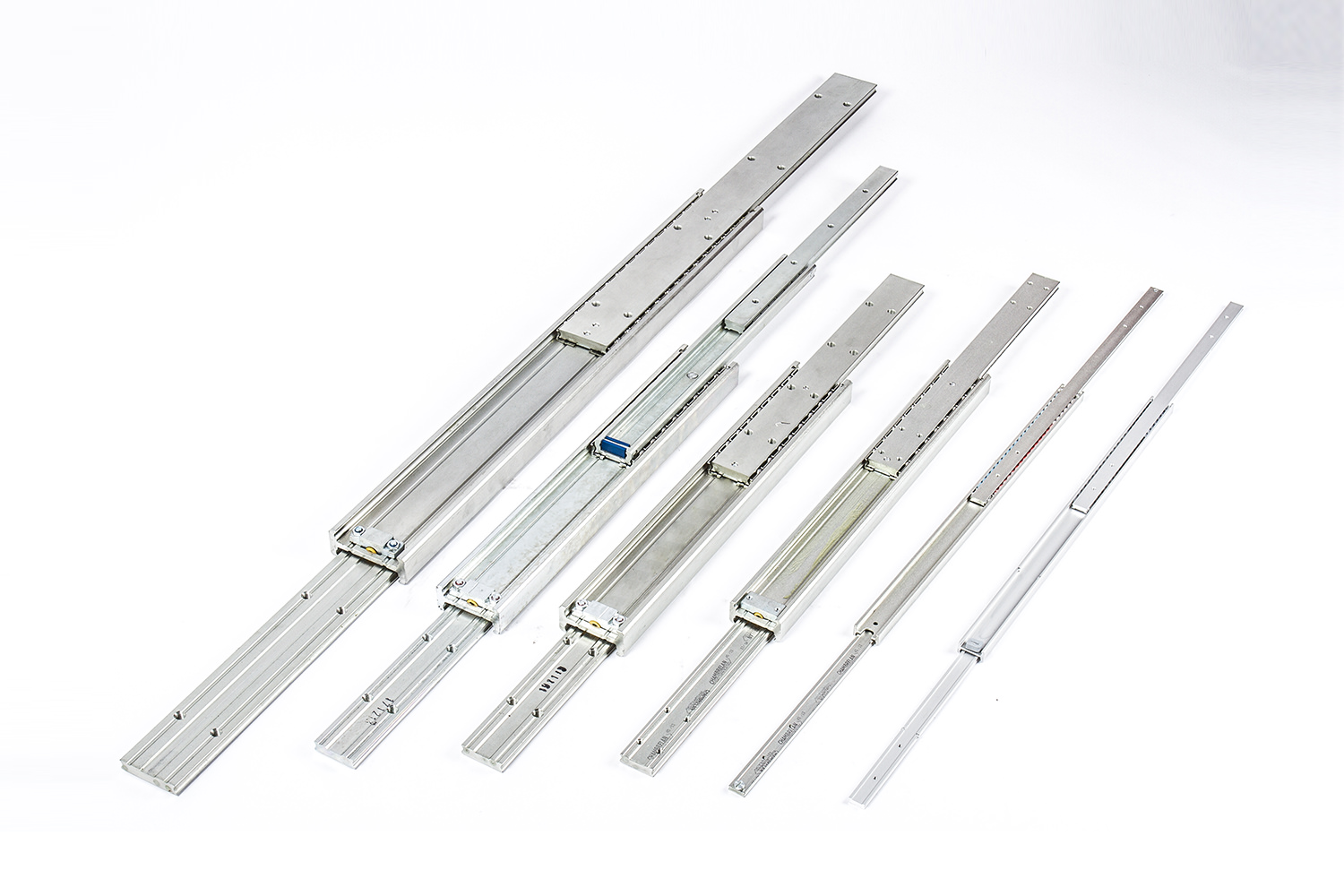

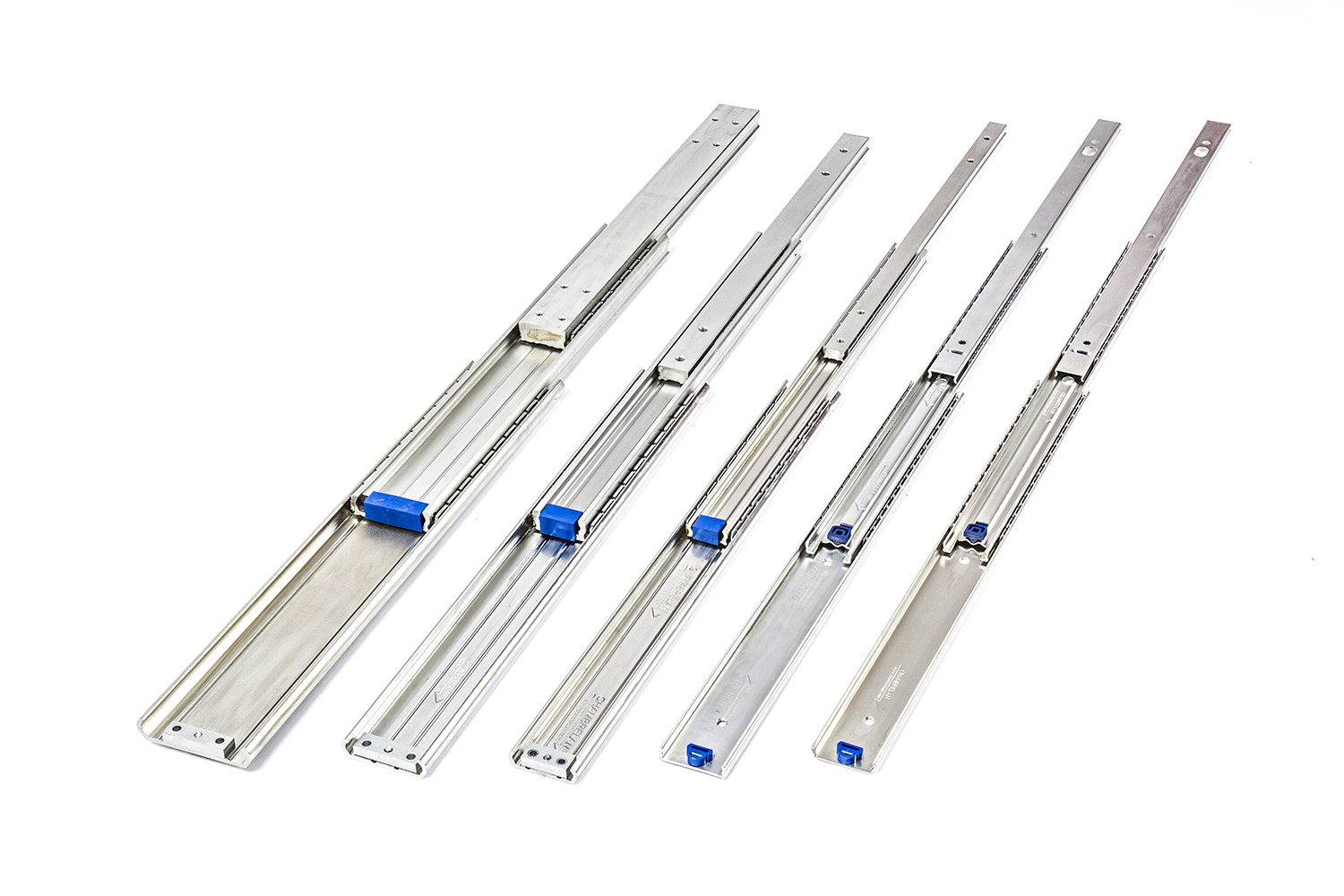

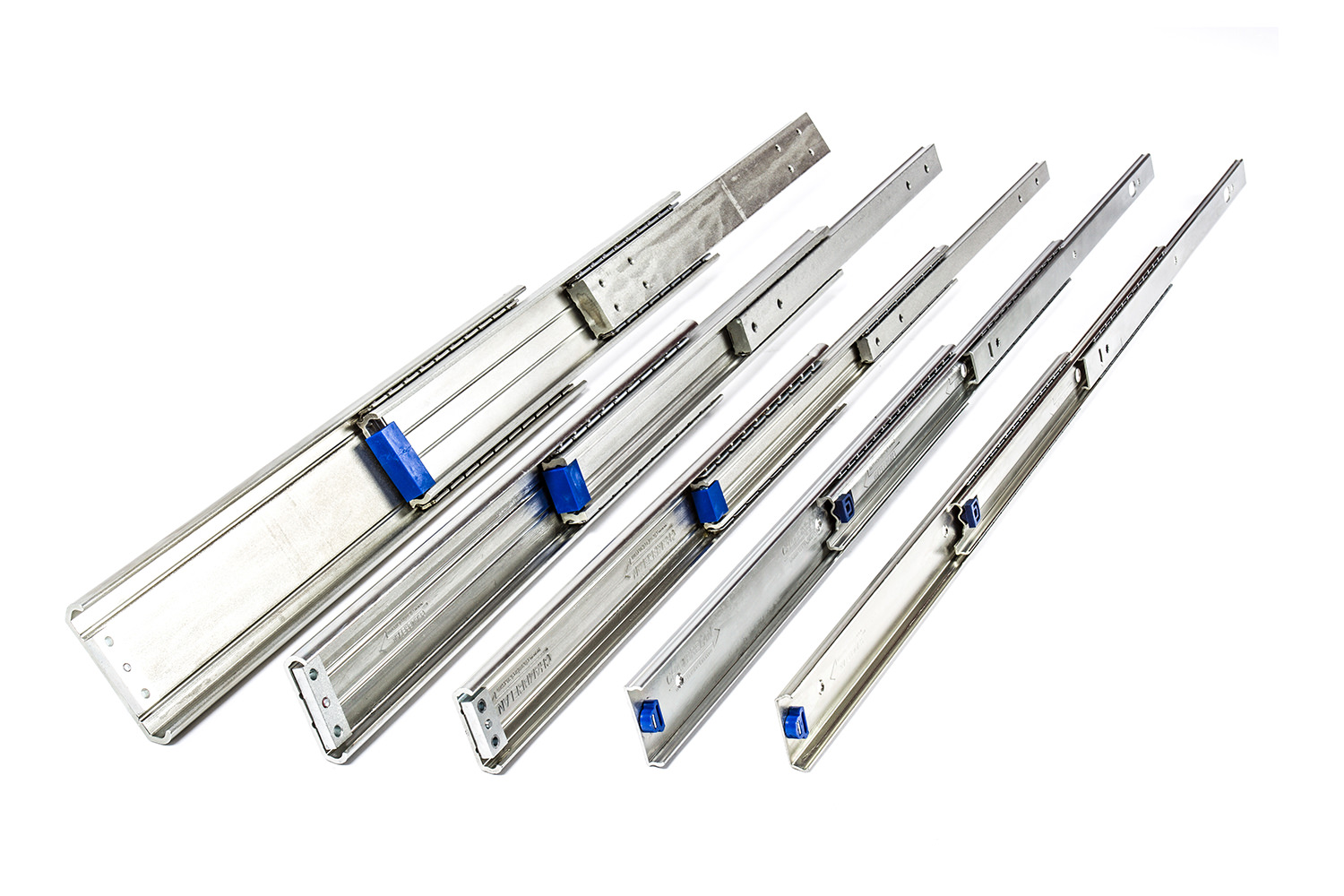

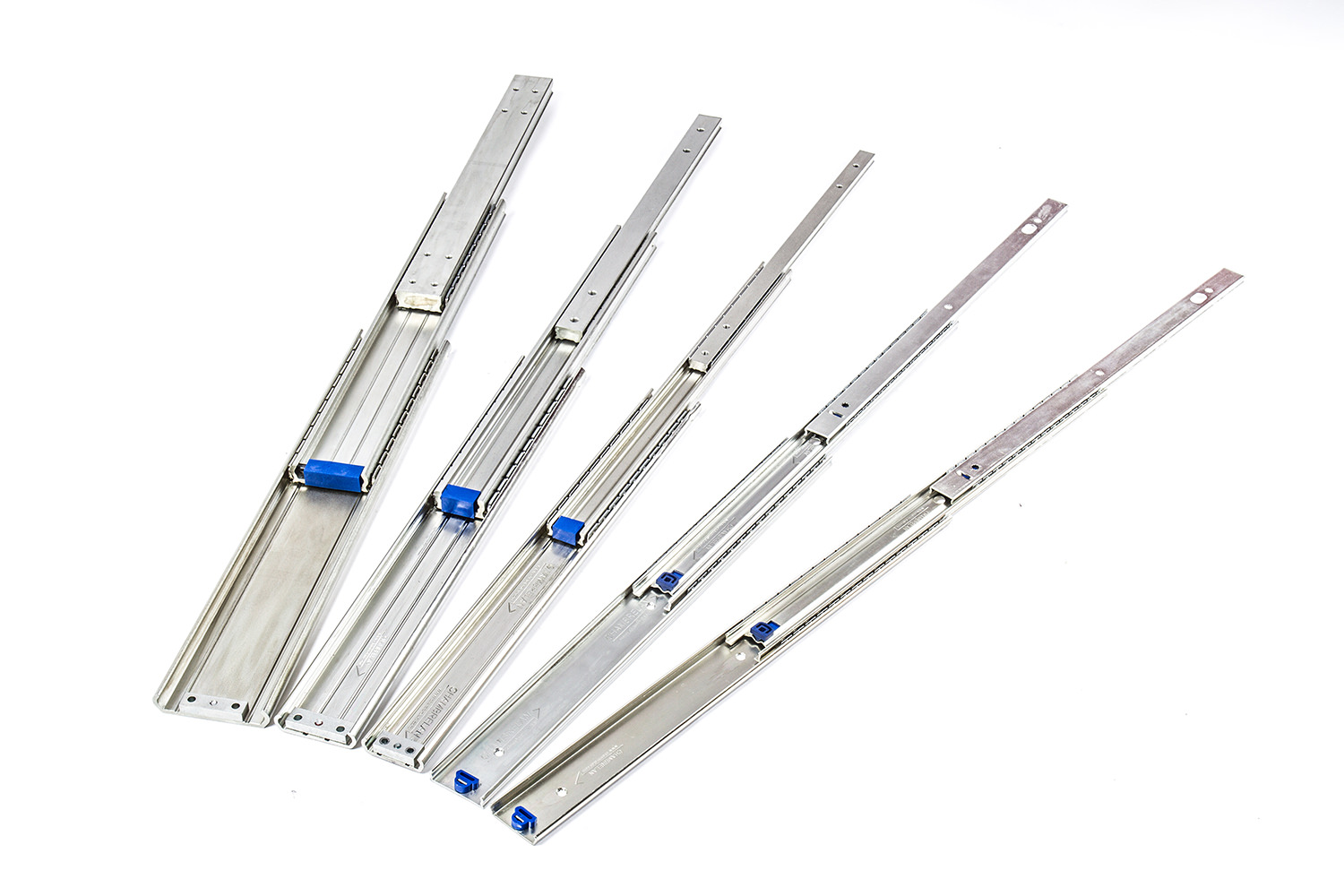

Luzapen osoko gidak
Luzapen osoko
gidak
Luzapen osoko gidak
Gogorrak, fidagarriak eta mantentze-lan gutxikoak. Hegalean egindako erauzketa oso baterako.
Gidak de aluminio
Gidak de altzairua
Gidak inoxidables
Gidak de altzairua
Gidak de altzairua
Gidak de altzairua
Gidak inoxidables
Gidak de altzairua
Gidak de altzairua
Gidak inoxidables
Gidak de altzairua
Gidak de altzairua
Gidak de altzairua
Gidak de altzairua
Gidak inoxidables
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 150 mm | 150 mm | 20 kg | 7 kg |
| 200 mm | 200 mm | 30 kg | 9 kg |
| 250 mm | 250 mm | 40 kg | 12 kg |
| 300 mm | 300 mm | 48 kg | 12 kg |
| 350 mm | 350 mm | 55 kg | 10 kg |
| 400 mm | 400 mm | 60 kg | 10 kg |
| 450 mm | 450 mm | 63 kg | 10 kg |
| 500 mm | 500 mm | 65 kg | 8 kg |
| 550 mm | 550 mm | 63 kg | 7 kg |
| 600 mm | 600 mm | 60 kg | 5 kg |
| 650 mm | 650 mm | 55 kg | Contactar con nosotros |
| 700 mm | 700 mm | 50 kg | Contactar con nosotros |
| 750 mm | 750 mm | 45 kg | Contactar con nosotros |
| 800 mm | 800 mm | 40 kg | Contactar con nosotros |
| 850 mm | 850 mm | 35 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 150 mm | 163 mm | 22 kg |
| 200 mm | 213 mm | 26 kg |
| 250 mm | 263 mm | 30 kg |
| 300 mm | 313 mm | 33 kg |
| 350 mm | 363 mm | 36 kg |
| 400 mm | 413 mm | 38 kg |
| 450 mm | 463 mm | 39 kg |
| 500 mm | 513 mm | 40 kg |
| 550 mm | 563 mm | 40 kg |
| 600 mm | 613 mm | 39 kg |
| 650 mm | 663 mm | 38 kg |
| 700 mm | 713 mm | 36 kg |
| 750 mm | 763 mm | 33 kg |
| 800 mm | 813 mm | 30 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 200 mm | 213 mm | 26 kg |
| 250 mm | 263 mm | 30 kg |
| 300 mm | 313 mm | 33 kg |
| 350 mm | 363 mm | 36 kg |
| 400 mm | 413 mm | 38 kg |
| 450 mm | 463 mm | 39 kg |
| 500 mm | 513 mm | 40 kg |
| 550 mm | 563 mm | 40 kg |
| 600 mm | 613 mm | 39 kg |
| 650 mm | 663 mm | 38 kg |
| 700 mm | 713 mm | 36 kg |
| 750 mm | 763 mm | 33 kg |
| 800 mm | 813 mm | 30 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 150 mm | 163 mm | 22 kg |
| 200 mm | 213 mm | 26 kg |
| 250 mm | 263 mm | 30 kg |
| 300 mm | 313 mm | 33 kg |
| 350 mm | 363 mm | 36 kg |
| 400 mm | 413 mm | 38 kg |
| 450 mm | 463 mm | 39 kg |
| 500 mm | 513 mm | 40 kg |
| 550 mm | 563 mm | 40 kg |
| 600 mm | 613 mm | 39 kg |
| 650 mm | 663 mm | 38 kg |
| 700 mm | 713 mm | 36 kg |
| 750 mm | 763 mm | 33 kg |
| 800 mm | 813 mm | 30 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 200 mm | 213 mm | 26 kg |
| 250 mm | 263 mm | 30 kg |
| 300 mm | 313 mm | 33 kg |
| 350 mm | 363 mm | 36 kg |
| 400 mm | 413 mm | 38 kg |
| 450 mm | 463 mm | 39 kg |
| 500 mm | 513 mm | 40 kg |
| 550 mm | 563 mm | 40 kg |
| 600 mm | 613 mm | 39 kg |
| 650 mm | 663 mm | 38 kg |
| 700 mm | 713 mm | 36 kg |
| 750 mm | 763 mm | 33 kg |
| 800 mm | 813 mm | 30 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 200 mm | 213 mm | 26 kg |
| 250 mm | 263 mm | 30 kg |
| 300 mm | 313 mm | 33 kg |
| 350 mm | 363 mm | 36 kg |
| 400 mm | 413 mm | 38 kg |
| 450 mm | 463 mm | 39 kg |
| 500 mm | 513 mm | 40 kg |
| 550 mm | 563 mm | 40 kg |
| 600 mm | 613 mm | 39 kg |
| 650 mm | 663 mm | 38 kg |
| 700 mm | 713 mm | 36 kg |
| 750 mm | 763 mm | 33 kg |
| 800 mm | 813 mm | 30 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 250 mm | 275 mm | 41 kg | 32 kg |
| 300 mm | 315 mm | 49 kg | 30 kg |
| 350 mm | 375 mm | 55 kg | 27 kg |
| 400 mm | 415 mm | 60 kg | 25 kg |
| 450 mm | 475 mm | 64 kg | 23 kg |
| 500 mm | 515 mm | 68 kg | 21 kg |
| 550 mm | 575 mm | 70 kg | 19 kg |
| 600 mm | 615 mm | 71 kg | 17 kg |
| 650 mm | 675 mm | 70 kg | 15 kg |
| 700 mm | 715 mm | 69 kg | 14 kg |
| 750 mm | 775 mm | 67 kg | 13 kg |
| 800 mm | 815 mm | 64 kg | 12 kg |
| 850 mm | 875 mm | 60 kg | 11 kg |
| 900 mm | 915 mm | 55 kg | 10 kg |
| 1000 mm | 1015 mm | 43 kg | Contactar con nosotros |
| 1100 mm | 1115 mm | 31 kg | Contactar con nosotros |
| 1200 mm | 1215 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 49 kg | 30 kg |
| 350 mm | 375 mm | 55 kg | 27 kg |
| 400 mm | 415 mm | 60 kg | 25 kg |
| 450 mm | 475 mm | 64 kg | 23 kg |
| 500 mm | 515 mm | 68 kg | 21 kg |
| 550 mm | 575 mm | 70 kg | 19 kg |
| 600 mm | 615 mm | 71 kg | 17 kg |
| 650 mm | 675 mm | 70 kg | 15 kg |
| 700 mm | 715 mm | 69 kg | 14 kg |
| 750 mm | 775 mm | 67 kg | 13 kg |
| 800 mm | 815 mm | 64 kg | 12 kg |
| 850 mm | 875 mm | 60 kg | 11 kg |
| 900 mm | 915 mm | 55 kg | 10 kg |
| 1000 mm | 1015 mm | 43 kg | Contactar con nosotros |
| 1100 mm | 1115 mm | 31 kg | Contactar con nosotros |
| 1200 mm | 1215 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 250 mm | 275 mm | 41 kg | 32 kg |
| 300 mm | 315 mm | 49 kg | 30 kg |
| 350 mm | 375 mm | 55 kg | 27 kg |
| 400 mm | 415 mm | 60 kg | 25 kg |
| 450 mm | 475 mm | 64 kg | 23 kg |
| 500 mm | 515 mm | 68 kg | 21 kg |
| 550 mm | 575 mm | 70 kg | 19 kg |
| 600 mm | 615 mm | 71 kg | 17 kg |
| 650 mm | 675 mm | 70 kg | 15 kg |
| 700 mm | 715 mm | 69 kg | 14 kg |
| 750 mm | 775 mm | 67 kg | 13 kg |
| 800 mm | 815 mm | 64 kg | 12 kg |
| 850 mm | 875 mm | 60 kg | 11 kg |
| 900 mm | 915 mm | 55 kg | 10 kg |
| 1000 mm | 1015 mm | 43 kg | Contactar con nosotros |
| 1100 mm | 1115 mm | 31 kg | Contactar con nosotros |
| 1200 mm | 1215 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 49 kg | 30 kg |
| 350 mm | 375 mm | 55 kg | 27 kg |
| 400 mm | 415 mm | 60 kg | 25 kg |
| 450 mm | 475 mm | 64 kg | 23 kg |
| 500 mm | 515 mm | 68 kg | 21 kg |
| 550 mm | 575 mm | 70 kg | 19 kg |
| 600 mm | 615 mm | 71 kg | 17 kg |
| 650 mm | 675 mm | 70 kg | 15 kg |
| 700 mm | 715 mm | 69 kg | 14 kg |
| 750 mm | 775 mm | 67 kg | 13 kg |
| 800 mm | 815 mm | 64 kg | 12 kg |
| 850 mm | 875 mm | 60 kg | 11 kg |
| 900 mm | 915 mm | 55 kg | 10 kg |
| 1000 mm | 1015 mm | 43 kg | Contactar con nosotros |
| 1100 mm | 1115 mm | 31 kg | Contactar con nosotros |
| 1200 mm | 1215 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 250 mm | 275 mm | 41 kg |
| 300 mm | 315 mm | 49 kg |
| 350 mm | 375 mm | 55 kg |
| 400 mm | 415 mm | 60 kg |
| 450 mm | 475 mm | 64 kg |
| 500 mm | 515 mm | 68 kg |
| 550 mm | 575 mm | 70 kg |
| 600 mm | 615 mm | 71 kg |
| 650 mm | 675 mm | 70 kg |
| 700 mm | 715 mm | 69 kg |
| 750 mm | 775 mm | 67 kg |
| 800 mm | 815 mm | 64 kg |
| 850 mm | 875 mm | 60 kg |
| 900 mm | 915 mm | 55 kg |
| 1000 mm | 1015 mm | 43 kg |
| 1100 mm | 1115 mm | 31 kg |
| 1200 mm | 1215 mm | 20 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 49 kg | 30 kg |
| 350 mm | 375 mm | 55 kg | 27 kg |
| 400 mm | 415 mm | 60 kg | 25 kg |
| 450 mm | 475 mm | 64 kg | 23 kg |
| 500 mm | 515 mm | 68 kg | 21 kg |
| 550 mm | 575 mm | 70 kg | 19 kg |
| 600 mm | 615 mm | 71 kg | 17 kg |
| 650 mm | 675 mm | 70 kg | 15 kg |
| 700 mm | 715 mm | 69 kg | 14 kg |
| 750 mm | 775 mm | 67 kg | 13 kg |
| 800 mm | 815 mm | 64 kg | 12 kg |
| 850 mm | 875 mm | 60 kg | 11 kg |
| 900 mm | 915 mm | 55 kg | 10 kg |
| 1000 mm | 1015 mm | 43 kg | Contactar con nosotros |
| 1100 mm | 1115 mm | 31 kg | Contactar con nosotros |
| 1200 mm | 1215 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 250 mm | 265 mm | 75 kg |
| 300 mm | 315 mm | 80 kg |
| 350 mm | 365 mm | 77 kg |
| 400 mm | 415 mm | 75 kg |
| 450 mm | 465 mm | 73 kg |
| 500 mm | 515 mm | 70 kg |
| 550 mm | 565 mm | 65 kg |
| 600 mm | 615 mm | 60 kg |
| 650 mm | 665 mm | 55 kg |
| 700 mm | 715 mm | 50 kg |
| 750 mm | 765 mm | 45 kg |
| 800 mm | 815 mm | 40 kg |
| 850 mm | 865 mm | 35 kg |
| 900 mm | 915 mm | 30 kg |
| 1000 mm | 1015 mm | 20 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 300 mm | 315 mm | 80 kg |
| 350 mm | 365 mm | 77 kg |
| 400 mm | 415 mm | 75 kg |
| 450 mm | 465 mm | 73 kg |
| 500 mm | 515 mm | 70 kg |
| 550 mm | 565 mm | 65 kg |
| 600 mm | 615 mm | 60 kg |
| 650 mm | 665 mm | 55 kg |
| 700 mm | 715 mm | 50 kg |
| 750 mm | 765 mm | 45 kg |
| 800 mm | 815 mm | 40 kg |
| 850 mm | 865 mm | 35 kg |
| 900 mm | 915 mm | 30 kg |
| 1000 mm | 1015 mm | 20 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 250 mm | 265 mm | 75 kg |
| 300 mm | 315 mm | 80 kg |
| 350 mm | 365 mm | 77 kg |
| 400 mm | 415 mm | 75 kg |
| 450 mm | 465 mm | 73 kg |
| 500 mm | 515 mm | 70 kg |
| 550 mm | 565 mm | 65 kg |
| 600 mm | 615 mm | 60 kg |
| 650 mm | 665 mm | 55 kg |
| 700 mm | 715 mm | 50 kg |
| 750 mm | 765 mm | 45 kg |
| 800 mm | 815 mm | 40 kg |
| 850 mm | 865 mm | 35 kg |
| 900 mm | 915 mm | 30 kg |
| 1000 mm | 1015 mm | 20 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 300 mm | 315 mm | 80 kg |
| 350 mm | 365 mm | 77 kg |
| 400 mm | 415 mm | 75 kg |
| 450 mm | 465 mm | 73 kg |
| 500 mm | 515 mm | 70 kg |
| 550 mm | 565 mm | 65 kg |
| 600 mm | 615 mm | 60 kg |
| 650 mm | 665 mm | 55 kg |
| 700 mm | 715 mm | 50 kg |
| 750 mm | 765 mm | 45 kg |
| 800 mm | 815 mm | 40 kg |
| 850 mm | 865 mm | 35 kg |
| 900 mm | 915 mm | 30 kg |
| 1000 mm | 1015 mm | 20 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 300 mm | 315 mm | 80 kg |
| 350 mm | 365 mm | 77 kg |
| 400 mm | 415 mm | 75 kg |
| 450 mm | 465 mm | 73 kg |
| 500 mm | 515 mm | 70 kg |
| 550 mm | 565 mm | 65 kg |
| 600 mm | 615 mm | 60 kg |
| 650 mm | 665 mm | 55 kg |
| 700 mm | 715 mm | 50 kg |
| 750 mm | 765 mm | 45 kg |
| 800 mm | 815 mm | 40 kg |
| 850 mm | 865 mm | 35 kg |
| 900 mm | 915 mm | 30 kg |
| 1000 mm | 1015 mm | 20 kg |
| Longitud | Gidari kopurua | Capacidad de carga por patínmontaje de canto | Capacidad de carga por patínmontaje de plano |
| 300 mm | 3 | 300 kg | 210 kg |
| 300 mm | 2 | 200 kg | 140 kg |
| 300 mm | 1 | 100 kg | 70 kg |
| 350 mm | 3 | 300 kg | 210 kg |
| 350 mm | 2 | 200 kg | 140 kg |
| 350 mm | 1 | 100 kg | 70 kg |
| 400 mm | 3 | 300 kg | 210 kg |
| 400 mm | 2 | 200 kg | 140 kg |
| 400 mm | 1 | 100 kg | 70 kg |
| 450 mm | 3 | 300 kg | 210 kg |
| 450 mm | 2 | 200 kg | 140 kg |
| 450 mm | 1 | 100 kg | 70 kg |
| 500 mm | 3 | 300 kg | 210 kg |
| 500 mm | 2 | 200 kg | 140 kg |
| 500 mm | 1 | 100 kg | 70 kg |
| 550 mm | 3 | 300 kg | 210 kg |
| 550 mm | 2 | 200 kg | 140 kg |
| 550 mm | 1 | 100 kg | 70 kg |
| 600 mm | 3 | 300 kg | 210 kg |
| 600 mm | 2 | 200 kg | 140 kg |
| 600 mm | 1 | 100 kg | 70 kg |
| 650 mm | 3 | 300 kg | 210 kg |
| 650 mm | 2 | 200 kg | 140 kg |
| 650 mm | 1 | 100 kg | 70 kg |
| 700 mm | 3 | 300 kg | 210 kg |
| 700 mm | 2 | 200 kg | 140 kg |
| 700 mm | 1 | 100 kg | 70 kg |
| 750 mm | 3 | 300 kg | 210 kg |
| 750 mm | 2 | 200 kg | 140 kg |
| 750 mm | 1 | 100 kg | 70 kg |
| 800 mm | 3 | 300 kg | 210 kg |
| 800 mm | 2 | 200 kg | 140 kg |
| 800 mm | 1 | 100 kg | 70 kg |
| 850 mm | 3 | 300 kg | 210 kg |
| 850 mm | 2 | 200 kg | 140 kg |
| 850 mm | 1 | 100 kg | 70 kg |
| 900 mm | 3 | 300 kg | 210 kg |
| 900 mm | 2 | 200 kg | 140 kg |
| 900 mm | 1 | 100 kg | 70 kg |
| 1000 mm | 3 | 300 kg | 210 kg |
| 1000 mm | 2 | 200 kg | 140 kg |
| 1000 mm | 1 | 100 kg | 70 kg |
| 1100 mm | 3 | 300 kg | 210 kg |
| 1100 mm | 2 | 200 kg | 140 kg |
| 1100 mm | 1 | 100 kg | 70 kg |
| 1200 mm | 3 | 300 kg | 210 kg |
| 1200 mm | 2 | 200 kg | 140 kg |
| 1200 mm | 1 | 100 kg | 70 kg |
| 1300 mm | 3 | 300 kg | 210 kg |
| 1300 mm | 2 | 200 kg | 140 kg |
| 1300 mm | 1 | 100 kg | 70 kg |
| 1400 mm | 3 | 300 kg | 210 kg |
| 1400 mm | 2 | 200 kg | 140 kg |
| 1400 mm | 1 | 100 kg | 70 kg |
| 1500 mm | 3 | 300 kg | 210 kg |
| 1500 mm | 2 | 200 kg | 140 kg |
| 1500 mm | 1 | 100 kg | 70 kg |
| 1600 mm | 3 | 300 kg | 210 kg |
| 1600 mm | 2 | 200 kg | 140 kg |
| 1600 mm | 1 | 100 kg | 70 kg |
| 1700 mm | 3 | 300 kg | 210 kg |
| 1700 mm | 2 | 200 kg | 140 kg |
| 1700 mm | 1 | 100 kg | 70 kg |
| 1800 mm | 3 | 300 kg | 210 kg |
| 1800 mm | 2 | 200 kg | 140 kg |
| 1800 mm | 1 | 100 kg | 70 kg |
| 1900 mm | 3 | 300 kg | 210 kg |
| 1900 mm | 2 | 200 kg | 140 kg |
| 1900 mm | 1 | 100 kg | 70 kg |
| 2000 mm | 3 | 300 kg | 210 kg |
| 2000 mm | 2 | 200 kg | 140 kg |
| 2000 mm | 1 | 100 kg | 70 kg |
| Long. en cerrado | Garapena/ibilbide erabilgarria | Carga por parmontaje de canto | Carga de plano |
| 750 mm | 784 mm | 785 kg | Contactar con nosotros |
| 800 mm | 836 mm | 810 kg | Contactar con nosotros |
| 850 mm | 888 mm | 835 kg | Contactar con nosotros |
| 900 mm | 940 mm | 860 kg | Contactar con nosotros |
| 1000 mm | 1044 mm | 885 kg | Contactar con nosotros |
| 1100 mm | 1100 mm | 900 kg | Contactar con nosotros |
| 1200 mm | 1204 mm | 895 kg | Contactar con nosotros |
| 1300 mm | 1308 mm | 875 kg | Contactar con nosotros |
| 1400 mm | 1412 mm | 845 kg | Contactar con nosotros |
| 1500 mm | 1516 mm | 800 kg | Contactar con nosotros |
| 1600 mm | 1620 mm | 740 kg | Contactar con nosotros |
| 1700 mm | 1724 mm | 665 kg | Contactar con nosotros |
| 1800 mm | 1828 mm | 585 kg | Contactar con nosotros |
| 1900 mm | 1932 mm | 500 kg | Contactar con nosotros |
| 2000 mm | 2036 mm | 400 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 500 mm | 500 mm | 600 kg | 350 kg |
| 550 mm | 550 mm | 640 kg | 345 kg |
| 600 mm | 600 mm | 685 kg | 340 kg |
| 650 mm | 650 mm | 720 kg | 335 kg |
| 700 mm | 700 mm | 755 kg | 330 kg |
| 750 mm | 750 mm | 785 kg | 325 kg |
| 800 mm | 800 mm | 810 kg | 320 kg |
| 850 mm | 850 mm | 835 kg | 310 kg |
| 900 mm | 900 mm | 860 kg | 305 kg |
| 1000 mm | 1000 mm | 885 kg | 285 kg |
| 1100 mm | 1100 mm | 900 kg | 270 kg |
| 1200 mm | 1200 mm | 895 kg | 250 kg |
| 1300 mm | 1300 mm | 875 kg | 235 kg |
| 1400 mm | 1400 mm | 845 kg | 220 kg |
| 1500 mm | 1500 mm | 800 kg | 200 kg |
| 1600 mm | 1600 mm | 740 kg | 185 kg |
| 1700 mm | 1700 mm | 665 kg | 165 kg |
| 1800 mm | 1800 mm | 585 kg | 150 kg |
| 1900 mm | 1900 mm | 500 kg | 125 kg |
| 2000 mm | 2000 mm | 400 kg | 100 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 750 mm | 784 mm | 785 kg |
| 800 mm | 836 mm | 810 kg |
| 850 mm | 888 mm | 835 kg |
| 900 mm | 940 mm | 860 kg |
| 1000 mm | 1044 mm | 885 kg |
| 1100 mm | 1100 mm | 900 kg |
| 1200 mm | 1204 mm | 895 kg |
| 1300 mm | 1308 mm | 875 kg |
| 1400 mm | 1412 mm | 845 kg |
| 1500 mm | 1516 mm | 800 kg |
| 1600 mm | 1620 mm | 740 kg |
| 1700 mm | 1724 mm | 665 kg |
| 1800 mm | 1828 mm | 585 kg |
| 1900 mm | 1932 mm | 500 kg |
| 2000 mm | 2036 mm | 400 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 500 mm | 500 mm | 700 kg | 550 kg |
| 550 mm | 550 mm | 780 kg | 545 kg |
| 600 mm | 600 mm | 850 kg | 540 kg |
| 650 mm | 650 mm | 920 kg | 535 kg |
| 700 mm | 700 mm | 990 kg | 530 kg |
| 750 mm | 750 mm | 1050 kg | 525 kg |
| 800 mm | 800 mm | 1100 kg | 520 kg |
| 850 mm | 850 mm | 1150 kg | 510 kg |
| 900 mm | 900 mm | 1200 kg | 505 kg |
| 1000 mm | 1000 mm | 1300 kg | 485 kg |
| 1100 mm | 1100 mm | 1400 kg | 470 kg |
| 1200 mm | 1200 mm | 1500 kg | 450 kg |
| 1300 mm | 1300 mm | 1480 kg | 425 kg |
| 1400 mm | 1400 mm | 1450 kg | 405 kg |
| 1500 mm | 1500 mm | 1410 kg | 380 kg |
| 1600 mm | 1600 mm | 1350 kg | 355 kg |
| 1700 mm | 1700 mm | 1290 kg | 325 kg |
| 1800 mm | 1800 mm | 1200 kg | 300 kg |
| 1900 mm | 1900 mm | 1120 kg | 270 kg |
| 2000 mm | 2000 mm | 1000 kg | 240 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 400 mm | 135 kg | 25 kg |
| 450 mm | 137 kg | 25 kg |
| 500 mm | 135 kg | 23 kg |
| 550 mm | 130 kg | 21 kg |
| 600 mm | 125 kg | 20 kg |
| 650 mm | 119 kg | 19 kg |
| 700 mm | 112 kg | 17 kg |
| 750 mm | 105 kg | 15 kg |
| 800 mm | 98 kg | 13 kg |
| 850 mm | 90 kg | 12 kg |
| 900 mm | 82 kg | Contactar con nosotros |
| 1000 mm | 65 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 400 mm | 135 kg | 25 kg |
| 450 mm | 137 kg | 25 kg |
| 500 mm | 135 kg | 23 kg |
| 550 mm | 130 kg | 21 kg |
| 600 mm | 125 kg | 20 kg |
| 650 mm | 119 kg | 19 kg |
| 700 mm | 112 kg | 17 kg |
| 750 mm | 105 kg | 15 kg |
| 800 mm | 98 kg | 13 kg |
| 850 mm | 90 kg | 12 kg |
| 900 mm | 82 kg | Contactar con nosotros |
| 1000 mm | 65 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 500 mm | 500 mm | 470 kg | 200 kg |
| 550 mm | 550 mm | 485 kg | 195 kg |
| 600 mm | 600 mm | 497 kg | 190 kg |
| 650 mm | 650 mm | 510 kg | 185 kg |
| 700 mm | 700 mm | 525 kg | 180 kg |
| 750 mm | 750 mm | 537 kg | 175 kg |
| 800 mm | 800 mm | 545 kg | 170 kg |
| 850 mm | 850 mm | 550 kg | 165 kg |
| 900 mm | 900 mm | 550 kg | 160 kg |
| 1000 mm | 1000 mm | 530 kg | 150 kg |
| 1100 mm | 1100 mm | 490 kg | 135 kg |
| 1200 mm | 1200 mm | 443 kg | 125 kg |
| 1300 mm | 1300 mm | 395 kg | 112 kg |
| 1400 mm | 1400 mm | 350 kg | 100 kg |
| 1500 mm | 1500 mm | 307 kg | 90 kg |
| 1600 mm | 1600 mm | 265 kg | 76 kg |
| 1700 mm | 1700 mm | 225 kg | 65 kg |
| 1800 mm | 1800 mm | 185 kg | 52 kg |
| 1900 mm | 1900 mm | 148 kg | 40 kg |
| 2000 mm | 2000 mm | 110 kg | 30 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 500 mm | 524 mm | 470 kg |
| 550 mm | 576 mm | 485 kg |
| 600 mm | 628 mm | 497 kg |
| 650 mm | 680 mm | 510 kg |
| 700 mm | 732 mm | 525 kg |
| 750 mm | 784 mm | 537 kg |
| 800 mm | 836 mm | 545 kg |
| 850 mm | 888 mm | 550 kg |
| 900 mm | 940 mm | 550 kg |
| 1000 mm | 1044 mm | 530 kg |
| 1100 mm | 1100 mm | 490 kg |
| 1200 mm | 1204 mm | 443 kg |
| 1300 mm | 1308 mm | 395 kg |
| 1400 mm | 1412 mm | 350 kg |
| 1500 mm | 1516 mm | 307 kg |
| 1600 mm | 1620 mm | 265 kg |
| 1700 mm | 1724 mm | 225 kg |
| 1800 mm | 1828 mm | 185 kg |
| 1900 mm | 1932 mm | 148 kg |
| 2000 mm | 2036 mm | 110 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 500 mm | 500 mm | 470 kg | 200 kg |
| 550 mm | 550 mm | 485 kg | 195 kg |
| 600 mm | 600 mm | 497 kg | 190 kg |
| 650 mm | 650 mm | 510 kg | 185 kg |
| 700 mm | 700 mm | 525 kg | 180 kg |
| 750 mm | 750 mm | 537 kg | 175 kg |
| 800 mm | 800 mm | 545 kg | 170 kg |
| 850 mm | 850 mm | 550 kg | 165 kg |
| 900 mm | 900 mm | 550 kg | 160 kg |
| 1000 mm | 1000 mm | 530 kg | 150 kg |
| 1100 mm | 1100 mm | 490 kg | 135 kg |
| 1200 mm | 1200 mm | 443 kg | 125 kg |
| 1300 mm | 1300 mm | 395 kg | 112 kg |
| 1400 mm | 1400 mm | 350 kg | 100 kg |
| 1500 mm | 1500 mm | 307 kg | 90 kg |
| 1600 mm | 1600 mm | 265 kg | 76 kg |
| 1700 mm | 1700 mm | 225 kg | 65 kg |
| 1800 mm | 1800 mm | 185 kg | 52 kg |
| 1900 mm | 1900 mm | 148 kg | 40 kg |
| 2000 mm | 2000 mm | 110 kg | 30 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 500 mm | 500 mm | 570 kg |
| 550 mm | 550 mm | 605 kg |
| 600 mm | 600 mm | 640 kg |
| 650 mm | 650 mm | 670 kg |
| 700 mm | 700 mm | 695 kg |
| 750 mm | 750 mm | 720 kg |
| 800 mm | 800 mm | 740 kg |
| 850 mm | 850 mm | 755 kg |
| 900 mm | 900 mm | 770 kg |
| 1000 mm | 1000 mm | 785 kg |
| 1100 mm | 1100 mm | 782 kg |
| 1200 mm | 1200 mm | 770 kg |
| 1300 mm | 1300 mm | 745 kg |
| 1400 mm | 1400 mm | 705 kg |
| 1500 mm | 1500 mm | 660 kg |
| 1600 mm | 1600 mm | 600 kg |
| 1700 mm | 1700 mm | 530 kg |
| 1800 mm | 1800 mm | 455 kg |
| 1900 mm | 1900 mm | 380 kg |
| 2000 mm | 2000 mm | 300 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 500 mm | 524 mm | 570 kg |
| 550 mm | 576 mm | 605 kg |
| 600 mm | 628 mm | 640 kg |
| 650 mm | 680 mm | 670 kg |
| 700 mm | 732 mm | 695 kg |
| 750 mm | 784 mm | 720 kg |
| 800 mm | 836 mm | 740 kg |
| 850 mm | 888 mm | 755 kg |
| 900 mm | 940 mm | 770 kg |
| 1000 mm | 1044 mm | 785 kg |
| 1100 mm | 1100 mm | 782 kg |
| 1200 mm | 1204 mm | 770 kg |
| 1300 mm | 1308 mm | 745 kg |
| 1400 mm | 1412 mm | 705 kg |
| 1500 mm | 1516 mm | 660 kg |
| 1600 mm | 1620 mm | 600 kg |
| 1700 mm | 1724 mm | 530 kg |
| 1800 mm | 1828 mm | 455 kg |
| 1900 mm | 1932 mm | 380 kg |
| 2000 mm | 2036 mm | 300 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 500 mm | 500 mm | 540 kg | 300 kg |
| 550 mm | 550 mm | 560 kg | 295 kg |
| 600 mm | 600 mm | 580 kg | 290 kg |
| 650 mm | 650 mm | 600 kg | 285 kg |
| 700 mm | 700 mm | 625 kg | 280 kg |
| 750 mm | 750 mm | 645 kg | 275 kg |
| 800 mm | 800 mm | 660 kg | 270 kg |
| 850 mm | 850 mm | 675 kg | 285 kg |
| 900 mm | 900 mm | 690 kg | 255 kg |
| 1000 mm | 1000 mm | 710 kg | 240 kg |
| 1100 mm | 1100 mm | 707 kg | 220 kg |
| 1200 mm | 1200 mm | 695 kg | 210 kg |
| 1300 mm | 1300 mm | 665 kg | 195 kg |
| 1400 mm | 1400 mm | 610 kg | 180 kg |
| 1500 mm | 1500 mm | 555 kg | 165 kg |
| 1600 mm | 1600 mm | 500 kg | 150 kg |
| 1700 mm | 1700 mm | 440 kg | 135 kg |
| 1800 mm | 1800 mm | 375 kg | 120 kg |
| 1900 mm | 1900 mm | 305 kg | 100 kg |
| 2000 mm | 2000 mm | 225 kg | 80 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 500 mm | 500 mm | 570 kg | 250 kg |
| 550 mm | 550 mm | 605 kg | 245 kg |
| 600 mm | 600 mm | 640 kg | 240 kg |
| 650 mm | 650 mm | 670 kg | 235 kg |
| 700 mm | 700 mm | 695 kg | 230 kg |
| 750 mm | 750 mm | 720 kg | 225 kg |
| 800 mm | 800 mm | 740 kg | 220 kg |
| 850 mm | 850 mm | 755 kg | 215 kg |
| 900 mm | 900 mm | 770 kg | 210 kg |
| 1000 mm | 1000 mm | 785 kg | 200 kg |
| 1100 mm | 1100 mm | 782 kg | 185 kg |
| 1200 mm | 1200 mm | 770 kg | 175 kg |
| 1300 mm | 1300 mm | 745 kg | 165 kg |
| 1400 mm | 1400 mm | 705 kg | 150 kg |
| 1500 mm | 1500 mm | 660 kg | 140 kg |
| 1600 mm | 1600 mm | 600 kg | 125 kg |
| 1700 mm | 1700 mm | 530 kg | 110 kg |
| 1800 mm | 1800 mm | 455 kg | 95 kg |
| 1900 mm | 1900 mm | 380 kg | 75 kg |
| 2000 mm | 2000 mm | 300 kg | 60 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 500 mm | 524 mm | 570 kg |
| 550 mm | 576 mm | 605 kg |
| 600 mm | 628 mm | 640 kg |
| 650 mm | 680 mm | 670 kg |
| 700 mm | 732 mm | 695 kg |
| 750 mm | 784 mm | 720 kg |
| 800 mm | 836 mm | 740 kg |
| 850 mm | 888 mm | 755 kg |
| 900 mm | 940 mm | 770 kg |
| 1000 mm | 1044 mm | 785 kg |
| 1100 mm | 1100 mm | 782 kg |
| 1200 mm | 1204 mm | 770 kg |
| 1300 mm | 1308 mm | 745 kg |
| 1400 mm | 1412 mm | 705 kg |
| 1500 mm | 1516 mm | 660 kg |
| 1600 mm | 1620 mm | 600 kg |
| 1700 mm | 1724 mm | 530 kg |
| 1800 mm | 1828 mm | 455 kg |
| 1900 mm | 1932 mm | 380 kg |
| 2000 mm | 2036 mm | 300 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 150 mm | 155 mm | 40 kg | 6 kg |
| 200 mm | 215 mm | 45 kg | 7 kg |
| 250 mm | 270 mm | 60 kg | 9 kg |
| 300 mm | 310 mm | 70 kg | 12 kg |
| 350 mm | 365 mm | 67 kg | 15 kg |
| 400 mm | 420 mm | 63 kg | 14 kg |
| 450 mm | 460 mm | 60 kg | 12 kg |
| 500 mm | 515 mm | 56 kg | 10 kg |
| 550 mm | 570 mm | 53 kg | 8 kg |
| 600 mm | 610 mm | 50 kg | 6 kg |
| 650 mm | 665 mm | 46 kg | 5 kg |
| 700 mm | 720 mm | 43 kg | Contactar con nosotros |
| 750 mm | 760 mm | 40 kg | Contactar con nosotros |
| 800 mm | 815 mm | 37 kg | Contactar con nosotros |
| 850 mm | 870 mm | 34 kg | Contactar con nosotros |
| 900 mm | 910 mm | 31 kg | Contactar con nosotros |
| 1000 mm | 1020 mm | 25 kg | Contactar con nosotros |
| 1100 mm | 1115 mm | 19 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 200 mm | 215 mm | 55 kg | 7 kg |
| 250 mm | 270 mm | 70 kg | 9 kg |
| 300 mm | 310 mm | 80 kg | 12 kg |
| 350 mm | 365 mm | 78 kg | 15 kg |
| 400 mm | 420 mm | 76 kg | 15 kg |
| 450 mm | 460 mm | 75 kg | 15 kg |
| 500 mm | 515 mm | 74 kg | 15 kg |
| 550 mm | 570 mm | 72 kg | 13 kg |
| 600 mm | 610 mm | 70 kg | 11 kg |
| 650 mm | 665 mm | 66 kg | 9 kg |
| 700 mm | 720 mm | 63 kg | Contactar con nosotros |
| 750 mm | 760 mm | 60 kg | Contactar con nosotros |
| 800 mm | 815 mm | 57 kg | Contactar con nosotros |
| 850 mm | 870 mm | 53 kg | Contactar con nosotros |
| 900 mm | 910 mm | 49 kg | Contactar con nosotros |
| 1000 mm | 1020 mm | 40 kg | Contactar con nosotros |
| 1100 mm | 1115 mm | 30 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 200 mm | 213 mm | 64 kg |
| 250 mm | 263 mm | 70 kg |
| 300 mm | 313 mm | 74 kg |
| 350 mm | 363 mm | 76 kg |
| 400 mm | 413 mm | 77 kg |
| 450 mm | 463 mm | 76 kg |
| 500 mm | 513 mm | 75 kg |
| 550 mm | 563 mm | 73 kg |
| 600 mm | 613 mm | 70 kg |
| 650 mm | 663 mm | 65 kg |
| 700 mm | 713 mm | 60 kg |
| 750 mm | 763 mm | 55 kg |
| 800 mm | 813 mm | 50 kg |
| 850 mm | 863 mm | 45 kg |
| 900 mm | 913 mm | 40 kg |
| 1000 mm | 1013 mm | 30 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 250 mm | 263 mm | 70 kg |
| 300 mm | 313 mm | 74 kg |
| 350 mm | 363 mm | 76 kg |
| 400 mm | 413 mm | 77 kg |
| 450 mm | 463 mm | 76 kg |
| 500 mm | 513 mm | 75 kg |
| 550 mm | 563 mm | 73 kg |
| 600 mm | 613 mm | 70 kg |
| 650 mm | 663 mm | 65 kg |
| 700 mm | 713 mm | 60 kg |
| 750 mm | 763 mm | 55 kg |
| 800 mm | 813 mm | 50 kg |
| 850 mm | 863 mm | 45 kg |
| 900 mm | 913 mm | 40 kg |
| 1000 mm | 1013 mm | 30 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 200 mm | 213 mm | 64 kg |
| 250 mm | 263 mm | 70 kg |
| 300 mm | 313 mm | 74 kg |
| 350 mm | 363 mm | 76 kg |
| 400 mm | 413 mm | 77 kg |
| 450 mm | 463 mm | 76 kg |
| 500 mm | 513 mm | 75 kg |
| 550 mm | 563 mm | 73 kg |
| 600 mm | 613 mm | 70 kg |
| 650 mm | 663 mm | 65 kg |
| 700 mm | 713 mm | 60 kg |
| 750 mm | 763 mm | 55 kg |
| 800 mm | 813 mm | 50 kg |
| 850 mm | 863 mm | 45 kg |
| 900 mm | 913 mm | 40 kg |
| 1000 mm | 1013 mm | 30 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 250 mm | 263 mm | 70 kg |
| 300 mm | 313 mm | 74 kg |
| 350 mm | 363 mm | 76 kg |
| 400 mm | 413 mm | 77 kg |
| 450 mm | 463 mm | 76 kg |
| 500 mm | 513 mm | 75 kg |
| 550 mm | 563 mm | 73 kg |
| 600 mm | 613 mm | 70 kg |
| 650 mm | 663 mm | 65 kg |
| 700 mm | 713 mm | 60 kg |
| 750 mm | 763 mm | 55 kg |
| 800 mm | 813 mm | 50 kg |
| 850 mm | 863 mm | 45 kg |
| 900 mm | 913 mm | 40 kg |
| 1000 mm | 1013 mm | 30 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 250 mm | 275 mm | 140 kg | 67 kg |
| 300 mm | 315 mm | 150 kg | 60 kg |
| 350 mm | 375 mm | 159 kg | 53 kg |
| 400 mm | 415 mm | 166 kg | 48 kg |
| 450 mm | 475 mm | 170 kg | 43 kg |
| 500 mm | 515 mm | 174 kg | 40 kg |
| 550 mm | 575 mm | 176 kg | 36 kg |
| 600 mm | 615 mm | 175 kg | 33 kg |
| 650 mm | 675 mm | 174 kg | 29 kg |
| 700 mm | 715 mm | 172 kg | 27 kg |
| 750 mm | 775 mm | 168 kg | 25 kg |
| 800 mm | 815 mm | 164 kg | 23 kg |
| 850 mm | 875 mm | 158 kg | 22 kg |
| 900 mm | 915 mm | 151 kg | 21 kg |
| 1000 mm | 1015 mm | 136 kg | 18 kg |
| 1100 mm | 1115 mm | 118 kg | 15 kg |
| 1200 mm | 1215 mm | 98 kg | 13 kg |
| 1300 mm | 1315 mm | 78 kg | 11 kg |
| 1400 mm | 1415 mm | 58 kg | 8 kg |
| 1500 mm | 1515 mm | 38 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 150 kg | 60 kg |
| 350 mm | 375 mm | 159 kg | 53 kg |
| 400 mm | 415 mm | 166 kg | 48 kg |
| 450 mm | 475 mm | 170 kg | 43 kg |
| 500 mm | 515 mm | 174 kg | 40 kg |
| 550 mm | 575 mm | 176 kg | 36 kg |
| 600 mm | 615 mm | 175 kg | 33 kg |
| 650 mm | 675 mm | 174 kg | 29 kg |
| 700 mm | 715 mm | 172 kg | 27 kg |
| 750 mm | 775 mm | 168 kg | 25 kg |
| 800 mm | 815 mm | 164 kg | 23 kg |
| 850 mm | 875 mm | 158 kg | 22 kg |
| 900 mm | 915 mm | 151 kg | 21 kg |
| 1000 mm | 1015 mm | 136 kg | 18 kg |
| 1100 mm | 1115 mm | 118 kg | 15 kg |
| 1200 mm | 1215 mm | 98 kg | 13 kg |
| 1300 mm | 1315 mm | 78 kg | 11 kg |
| 1400 mm | 1415 mm | 58 kg | 8 kg |
| 1500 mm | 1515 mm | 38 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 250 mm | 275 mm | 140 kg | 67 kg |
| 300 mm | 315 mm | 150 kg | 60 kg |
| 350 mm | 375 mm | 159 kg | 53 kg |
| 400 mm | 415 mm | 166 kg | 48 kg |
| 450 mm | 475 mm | 170 kg | 43 kg |
| 500 mm | 515 mm | 174 kg | 40 kg |
| 550 mm | 575 mm | 176 kg | 36 kg |
| 600 mm | 615 mm | 175 kg | 33 kg |
| 650 mm | 675 mm | 174 kg | 29 kg |
| 700 mm | 715 mm | 172 kg | 27 kg |
| 750 mm | 775 mm | 168 kg | 25 kg |
| 800 mm | 815 mm | 164 kg | 23 kg |
| 850 mm | 875 mm | 158 kg | 22 kg |
| 900 mm | 915 mm | 151 kg | 21 kg |
| 1000 mm | 1015 mm | 136 kg | 18 kg |
| 1100 mm | 1115 mm | 118 kg | 15 kg |
| 1200 mm | 1215 mm | 98 kg | 13 kg |
| 1300 mm | 1315 mm | 78 kg | 11 kg |
| 1400 mm | 1415 mm | 58 kg | 8 kg |
| 1500 mm | 1515 mm | 38 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 150 kg | 60 kg |
| 350 mm | 375 mm | 159 kg | 53 kg |
| 400 mm | 415 mm | 166 kg | 48 kg |
| 450 mm | 475 mm | 170 kg | 43 kg |
| 500 mm | 515 mm | 174 kg | 40 kg |
| 550 mm | 575 mm | 176 kg | 36 kg |
| 600 mm | 615 mm | 175 kg | 33 kg |
| 650 mm | 675 mm | 174 kg | 29 kg |
| 700 mm | 715 mm | 172 kg | 27 kg |
| 750 mm | 775 mm | 168 kg | 25 kg |
| 800 mm | 815 mm | 164 kg | 23 kg |
| 850 mm | 875 mm | 158 kg | 22 kg |
| 900 mm | 915 mm | 151 kg | 21 kg |
| 1000 mm | 1015 mm | 136 kg | 18 kg |
| 1100 mm | 1115 mm | 118 kg | 15 kg |
| 1200 mm | 1215 mm | 98 kg | 13 kg |
| 1300 mm | 1315 mm | 78 kg | 11 kg |
| 1400 mm | 1415 mm | 58 kg | 8 kg |
| 1500 mm | 1515 mm | 38 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 250 mm | 275 mm | 140 kg |
| 300 mm | 315 mm | 150 kg |
| 350 mm | 375 mm | 159 kg |
| 400 mm | 415 mm | 166 kg |
| 450 mm | 475 mm | 170 kg |
| 500 mm | 515 mm | 174 kg |
| 550 mm | 575 mm | 176 kg |
| 600 mm | 615 mm | 175 kg |
| 650 mm | 675 mm | 174 kg |
| 700 mm | 715 mm | 172 kg |
| 750 mm | 775 mm | 168 kg |
| 800 mm | 815 mm | 164 kg |
| 850 mm | 875 mm | 158 kg |
| 900 mm | 915 mm | 151 kg |
| 1000 mm | 1015 mm | 136 kg |
| 1100 mm | 1115 mm | 118 kg |
| 1200 mm | 1215 mm | 98 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 150 kg | 60 kg |
| 350 mm | 375 mm | 159 kg | 53 kg |
| 400 mm | 415 mm | 166 kg | 48 kg |
| 450 mm | 475 mm | 170 kg | 43 kg |
| 500 mm | 515 mm | 174 kg | 40 kg |
| 550 mm | 575 mm | 176 kg | 36 kg |
| 600 mm | 615 mm | 175 kg | 33 kg |
| 650 mm | 675 mm | 174 kg | 29 kg |
| 700 mm | 715 mm | 172 kg | 27 kg |
| 750 mm | 775 mm | 168 kg | 25 kg |
| 800 mm | 815 mm | 164 kg | 23 kg |
| 850 mm | 875 mm | 158 kg | 22 kg |
| 900 mm | 915 mm | 151 kg | 21 kg |
| 1000 mm | 1015 mm | 136 kg | 18 kg |
| 1100 mm | 1115 mm | 118 kg | 15 kg |
| 1200 mm | 1215 mm | 98 kg | 13 kg |
| 1300 mm | 1315 mm | 78 kg | 11 kg |
| 1400 mm | 1415 mm | 58 kg | 8 kg |
| 1500 mm | 1515 mm | 38 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 250 mm | 275 mm | 140 kg | 212 kg |
| 300 mm | 315 mm | 180 kg | 197 kg |
| 350 mm | 375 mm | 228 kg | 182 kg |
| 400 mm | 415 mm | 276 kg | 168 kg |
| 450 mm | 475 mm | 320 kg | 156 kg |
| 500 mm | 515 mm | 350 kg | 144 kg |
| 550 mm | 575 mm | 355 kg | 132 kg |
| 600 mm | 615 mm | 350 kg | 124 kg |
| 650 mm | 675 mm | 340 kg | 115 kg |
| 700 mm | 715 mm | 330 kg | 106 kg |
| 750 mm | 775 mm | 319 kg | 98 kg |
| 800 mm | 815 mm | 305 kg | 91 kg |
| 850 mm | 875 mm | 292 kg | 85 kg |
| 900 mm | 915 mm | 277 kg | 79 kg |
| 1000 mm | 1015 mm | 250 kg | 68 kg |
| 1100 mm | 1115 mm | 225 kg | 60 kg |
| 1200 mm | 1215 mm | 202 kg | 53 kg |
| 1300 mm | 1315 mm | 177 kg | 47 kg |
| 1400 mm | 1415 mm | 152 kg | 42 kg |
| 1500 mm | 1515 mm | 130 kg | 38 kg |
| 1600 mm | 1615 mm | 110 kg | 33 kg |
| 1700 mm | 1715 mm | 90 kg | 28 kg |
| 1800 mm | 1815 mm | 70 kg | 23 kg |
| 1900 mm | 1915 mm | 50 kg | 17 kg |
| 2000 mm | 2015 mm | 30 kg | 10 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 180 kg | 197 kg |
| 350 mm | 375 mm | 228 kg | 182 kg |
| 400 mm | 415 mm | 276 kg | 168 kg |
| 450 mm | 475 mm | 320 kg | 156 kg |
| 500 mm | 515 mm | 350 kg | 144 kg |
| 550 mm | 575 mm | 355 kg | 132 kg |
| 600 mm | 615 mm | 350 kg | 124 kg |
| 650 mm | 675 mm | 340 kg | 115 kg |
| 700 mm | 715 mm | 330 kg | 106 kg |
| 750 mm | 775 mm | 319 kg | 98 kg |
| 800 mm | 815 mm | 305 kg | 91 kg |
| 850 mm | 875 mm | 292 kg | 85 kg |
| 900 mm | 915 mm | 277 kg | 79 kg |
| 1000 mm | 1015 mm | 250 kg | 68 kg |
| 1100 mm | 1115 mm | 225 kg | 60 kg |
| 1200 mm | 1215 mm | 202 kg | 53 kg |
| 1300 mm | 1315 mm | 177 kg | 47 kg |
| 1400 mm | 1415 mm | 152 kg | 42 kg |
| 1500 mm | 1515 mm | 130 kg | 38 kg |
| 1600 mm | 1615 mm | 110 kg | 33 kg |
| 1700 mm | 1715 mm | 90 kg | 28 kg |
| 1800 mm | 1815 mm | 70 kg | 23 kg |
| 1900 mm | 1915 mm | 50 kg | 17 kg |
| 2000 mm | 2015 mm | 30 kg | 10 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 250 mm | 275 mm | 140 kg | 212 kg |
| 300 mm | 315 mm | 180 kg | 197 kg |
| 350 mm | 375 mm | 228 kg | 182 kg |
| 400 mm | 415 mm | 276 kg | 168 kg |
| 450 mm | 475 mm | 320 kg | 156 kg |
| 500 mm | 515 mm | 350 kg | 144 kg |
| 550 mm | 575 mm | 355 kg | 132 kg |
| 600 mm | 615 mm | 350 kg | 124 kg |
| 650 mm | 675 mm | 340 kg | 115 kg |
| 700 mm | 715 mm | 330 kg | 106 kg |
| 750 mm | 775 mm | 319 kg | 98 kg |
| 800 mm | 815 mm | 305 kg | 91 kg |
| 850 mm | 875 mm | 292 kg | 85 kg |
| 900 mm | 915 mm | 277 kg | 79 kg |
| 1000 mm | 1015 mm | 250 kg | 68 kg |
| 1100 mm | 1115 mm | 225 kg | 60 kg |
| 1200 mm | 1215 mm | 202 kg | 53 kg |
| 1300 mm | 1315 mm | 177 kg | 47 kg |
| 1400 mm | 1415 mm | 152 kg | 42 kg |
| 1500 mm | 1515 mm | 130 kg | 38 kg |
| 1600 mm | 1615 mm | 110 kg | 33 kg |
| 1700 mm | 1715 mm | 90 kg | 28 kg |
| 1800 mm | 1815 mm | 70 kg | 23 kg |
| 1900 mm | 1915 mm | 50 kg | 17 kg |
| 2000 mm | 2015 mm | 30 kg | 10 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 180 kg | 197 kg |
| 350 mm | 375 mm | 228 kg | 182 kg |
| 400 mm | 415 mm | 276 kg | 168 kg |
| 450 mm | 475 mm | 320 kg | 156 kg |
| 500 mm | 515 mm | 350 kg | 144 kg |
| 550 mm | 575 mm | 355 kg | 132 kg |
| 600 mm | 615 mm | 350 kg | 124 kg |
| 650 mm | 675 mm | 340 kg | 115 kg |
| 700 mm | 715 mm | 330 kg | 106 kg |
| 750 mm | 775 mm | 319 kg | 98 kg |
| 800 mm | 815 mm | 305 kg | 91 kg |
| 850 mm | 875 mm | 292 kg | 85 kg |
| 900 mm | 915 mm | 277 kg | 79 kg |
| 1000 mm | 1015 mm | 250 kg | 68 kg |
| 1100 mm | 1115 mm | 225 kg | 60 kg |
| 1200 mm | 1215 mm | 202 kg | 53 kg |
| 1300 mm | 1315 mm | 177 kg | 47 kg |
| 1400 mm | 1415 mm | 152 kg | 42 kg |
| 1500 mm | 1515 mm | 130 kg | 38 kg |
| 1600 mm | 1615 mm | 110 kg | 33 kg |
| 1700 mm | 1715 mm | 90 kg | 28 kg |
| 1800 mm | 1815 mm | 70 kg | 23 kg |
| 1900 mm | 1915 mm | 50 kg | 17 kg |
| 2000 mm | 2015 mm | 30 kg | 10 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 300 mm | 315 mm | 180 kg |
| 350 mm | 375 mm | 228 kg |
| 400 mm | 415 mm | 276 kg |
| 450 mm | 475 mm | 320 kg |
| 500 mm | 515 mm | 350 kg |
| 550 mm | 575 mm | 355 kg |
| 600 mm | 615 mm | 350 kg |
| 650 mm | 675 mm | 340 kg |
| 700 mm | 715 mm | 330 kg |
| 750 mm | 775 mm | 319 kg |
| 800 mm | 815 mm | 305 kg |
| 850 mm | 875 mm | 292 kg |
| 900 mm | 915 mm | 277 kg |
| 1000 mm | 1015 mm | 250 kg |
| 1100 mm | 1115 mm | 225 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 180 kg | 197 kg |
| 350 mm | 375 mm | 228 kg | 182 kg |
| 400 mm | 415 mm | 276 kg | 168 kg |
| 450 mm | 475 mm | 320 kg | 156 kg |
| 500 mm | 515 mm | 350 kg | 144 kg |
| 550 mm | 575 mm | 355 kg | 132 kg |
| 600 mm | 615 mm | 350 kg | 124 kg |
| 650 mm | 675 mm | 340 kg | 115 kg |
| 700 mm | 715 mm | 330 kg | 106 kg |
| 750 mm | 775 mm | 319 kg | 98 kg |
| 800 mm | 815 mm | 305 kg | 91 kg |
| 850 mm | 875 mm | 292 kg | 85 kg |
| 900 mm | 915 mm | 277 kg | 79 kg |
| 1000 mm | 1015 mm | 250 kg | 68 kg |
| 1100 mm | 1115 mm | 225 kg | 60 kg |
| 1200 mm | 1215 mm | 202 kg | 53 kg |
| 1300 mm | 1315 mm | 177 kg | 47 kg |
| 1400 mm | 1415 mm | 152 kg | 42 kg |
| 1500 mm | 1515 mm | 130 kg | 38 kg |
| 1600 mm | 1615 mm | 110 kg | 33 kg |
| 1700 mm | 1715 mm | 90 kg | 28 kg |
| 1800 mm | 1815 mm | 70 kg | 23 kg |
| 1900 mm | 1915 mm | 50 kg | 17 kg |
| 2000 mm | 2015 mm | 30 kg | 10 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 250 mm | 275 mm | 230 kg | 150 kg |
| 300 mm | 315 mm | 300 kg | 150 kg |
| 350 mm | 375 mm | 355 kg | 150 kg |
| 400 mm | 415 mm | 395 kg | 150 kg |
| 450 mm | 475 mm | 430 kg | 150 kg |
| 500 mm | 515 mm | 440 kg | 150 kg |
| 550 mm | 575 mm | 435 kg | 140 kg |
| 600 mm | 615 mm | 430 kg | 130 kg |
| 650 mm | 675 mm | 425 kg | 120 kg |
| 700 mm | 715 mm | 410 kg | 110 kg |
| 750 mm | 775 mm | 400 kg | 100 kg |
| 800 mm | 815 mm | 385 kg | 90 kg |
| 850 mm | 875 mm | 375 kg | 85 kg |
| 900 mm | 915 mm | 360 kg | 80 kg |
| 1000 mm | 1015 mm | 340 kg | 70 kg |
| 1100 mm | 1115 mm | 300 kg | 60 kg |
| 1200 mm | 1215 mm | 275 kg | 54 kg |
| 1300 mm | 1315 mm | 245 kg | 47 kg |
| 1400 mm | 1415 mm | 220 kg | 44 kg |
| 1500 mm | 1515 mm | 175 kg | 40 kg |
| 1600 mm | 1615 mm | 155 kg | 35 kg |
| 1700 mm | 1715 mm | 135 kg | 30 kg |
| 1800 mm | 1815 mm | 110 kg | 25 kg |
| 1900 mm | 1915 mm | 85 kg | 17 kg |
| 2000 mm | 2015 mm | 60 kg | 10 kg |
| Long. en cerrado | Garapena/ibilbide erabilgarria | Carga por parmontaje de canto | Carga de plano |
| 248 mm | 273 mm | 65 kg | Contactar con nosotros |
| 298 mm | 324 mm | 60 kg | Contactar con nosotros |
| 349 mm | 375 mm | 55 kg | Contactar con nosotros |
| 400 mm | 425 mm | 50 kg | Contactar con nosotros |
| 451 mm | 476 mm | 48 kg | Contactar con nosotros |
| 502 mm | 527 mm | 45 kg | Contactar con nosotros |
| 552 mm | 578 mm | 40 kg | Contactar con nosotros |
| 603 mm | 629 mm | 35 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 200 mm | 215 mm | 55 kg | 7 kg |
| 250 mm | 270 mm | 70 kg | 9 kg |
| 300 mm | 310 mm | 80 kg | 12 kg |
| 350 mm | 365 mm | 78 kg | 15 kg |
| 400 mm | 420 mm | 76 kg | 15 kg |
| 450 mm | 460 mm | 75 kg | 15 kg |
| 500 mm | 515 mm | 74 kg | 15 kg |
| 550 mm | 570 mm | 72 kg | 13 kg |
| 600 mm | 610 mm | 70 kg | 11 kg |
| 650 mm | 665 mm | 66 kg | 9 kg |
| 700 mm | 720 mm | 63 kg | Contactar con nosotros |
| 750 mm | 760 mm | 60 kg | Contactar con nosotros |
| 800 mm | 815 mm | 57 kg | Contactar con nosotros |
| 850 mm | 870 mm | 53 kg | Contactar con nosotros |
| 900 mm | 910 mm | 49 kg | Contactar con nosotros |
| 1000 mm | 1020 mm | 40 kg | Contactar con nosotros |
| 1100 mm | 1115 mm | 30 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 200 mm | 213 mm | 40 kg |
| 250 mm | 263 mm | 45 kg |
| 300 mm | 313 mm | 50 kg |
| 350 mm | 363 mm | 55 kg |
| 400 mm | 413 mm | 60 kg |
| 450 mm | 463 mm | 63 kg |
| 500 mm | 513 mm | 65 kg |
| 550 mm | 563 mm | 63 kg |
| 600 mm | 613 mm | 60 kg |
| 650 mm | 663 mm | 55 kg |
| 700 mm | 713 mm | 50 kg |
| 750 mm | 763 mm | 45 kg |
| 800 mm | 813 mm | 40 kg |
| 850 mm | 863 mm | 35 kg |
| 900 mm | 913 mm | 30 kg |
| 1000 mm | 1013 mm | 20 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 250 mm | 263 mm | 45 kg |
| 300 mm | 313 mm | 50 kg |
| 350 mm | 363 mm | 55 kg |
| 400 mm | 413 mm | 60 kg |
| 450 mm | 463 mm | 63 kg |
| 500 mm | 513 mm | 65 kg |
| 550 mm | 563 mm | 63 kg |
| 600 mm | 613 mm | 60 kg |
| 650 mm | 663 mm | 55 kg |
| 700 mm | 713 mm | 50 kg |
| 750 mm | 763 mm | 45 kg |
| 800 mm | 813 mm | 40 kg |
| 850 mm | 863 mm | 35 kg |
| 900 mm | 913 mm | 30 kg |
| 1000 mm | 1013 mm | 20 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 200 mm | 213 mm | 40 kg |
| 250 mm | 263 mm | 45 kg |
| 300 mm | 313 mm | 50 kg |
| 350 mm | 363 mm | 55 kg |
| 400 mm | 413 mm | 60 kg |
| 450 mm | 463 mm | 63 kg |
| 500 mm | 513 mm | 65 kg |
| 550 mm | 563 mm | 63 kg |
| 600 mm | 613 mm | 60 kg |
| 650 mm | 663 mm | 55 kg |
| 700 mm | 713 mm | 50 kg |
| 750 mm | 763 mm | 45 kg |
| 800 mm | 813 mm | 40 kg |
| 850 mm | 863 mm | 35 kg |
| 900 mm | 913 mm | 30 kg |
| 1000 mm | 1013 mm | 20 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 250 mm | 263 mm | 45 kg |
| 300 mm | 313 mm | 50 kg |
| 350 mm | 363 mm | 55 kg |
| 400 mm | 413 mm | 60 kg |
| 450 mm | 463 mm | 63 kg |
| 500 mm | 513 mm | 65 kg |
| 550 mm | 563 mm | 63 kg |
| 600 mm | 613 mm | 60 kg |
| 650 mm | 663 mm | 55 kg |
| 700 mm | 713 mm | 50 kg |
| 750 mm | 763 mm | 45 kg |
| 800 mm | 813 mm | 40 kg |
| 850 mm | 863 mm | 35 kg |
| 900 mm | 913 mm | 30 kg |
| 1000 mm | 1013 mm | 20 kg |
| 1000 mm | 1013 mm | 20 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 250 mm | 275 mm | 140 kg | 67 kg |
| 300 mm | 315 mm | 150 kg | 60 kg |
| 350 mm | 375 mm | 159 kg | 53 kg |
| 400 mm | 415 mm | 166 kg | 48 kg |
| 450 mm | 475 mm | 170 kg | 43 kg |
| 500 mm | 515 mm | 174 kg | 40 kg |
| 550 mm | 575 mm | 176 kg | 36 kg |
| 600 mm | 615 mm | 175 kg | 33 kg |
| 650 mm | 675 mm | 174 kg | 29 kg |
| 700 mm | 715 mm | 172 kg | 27 kg |
| 750 mm | 775 mm | 168 kg | 25 kg |
| 800 mm | 815 mm | 164 kg | 23 kg |
| 850 mm | 875 mm | 158 kg | 22 kg |
| 900 mm | 915 mm | 151 kg | 21 kg |
| 1000 mm | 1015 mm | 136 kg | 18 kg |
| 1100 mm | 1115 mm | 118 kg | 15 kg |
| 1200 mm | 1215 mm | 98 kg | 13 kg |
| 1300 mm | 1315 mm | 78 kg | 11 kg |
| 1400 mm | 1415 mm | 58 kg | 8 kg |
| 1500 mm | 1515 mm | 38 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 150 kg | 60 kg |
| 350 mm | 375 mm | 159 kg | 53 kg |
| 400 mm | 415 mm | 166 kg | 48 kg |
| 450 mm | 475 mm | 170 kg | 43 kg |
| 500 mm | 515 mm | 174 kg | 40 kg |
| 550 mm | 575 mm | 176 kg | 36 kg |
| 600 mm | 615 mm | 175 kg | 33 kg |
| 650 mm | 675 mm | 174 kg | 29 kg |
| 700 mm | 715 mm | 172 kg | 27 kg |
| 750 mm | 775 mm | 168 kg | 25 kg |
| 800 mm | 815 mm | 164 kg | 23 kg |
| 850 mm | 875 mm | 158 kg | 22 kg |
| 900 mm | 915 mm | 151 kg | 21 kg |
| 1000 mm | 1015 mm | 136 kg | 18 kg |
| 1100 mm | 1115 mm | 118 kg | 15 kg |
| 1200 mm | 1215 mm | 98 kg | 13 kg |
| 1300 mm | 1315 mm | 78 kg | 11 kg |
| 1400 mm | 1415 mm | 58 kg | 8 kg |
| 1500 mm | 1515 mm | 38 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 250 mm | 275 mm | 140 kg | 67 kg |
| 300 mm | 315 mm | 150 kg | 60 kg |
| 350 mm | 375 mm | 159 kg | 53 kg |
| 400 mm | 415 mm | 166 kg | 48 kg |
| 450 mm | 475 mm | 170 kg | 43 kg |
| 500 mm | 515 mm | 174 kg | 40 kg |
| 550 mm | 575 mm | 176 kg | 36 kg |
| 600 mm | 615 mm | 175 kg | 33 kg |
| 650 mm | 675 mm | 174 kg | 29 kg |
| 700 mm | 715 mm | 172 kg | 27 kg |
| 750 mm | 775 mm | 168 kg | 25 kg |
| 800 mm | 815 mm | 164 kg | 23 kg |
| 850 mm | 875 mm | 158 kg | 22 kg |
| 900 mm | 915 mm | 151 kg | 21 kg |
| 1000 mm | 1015 mm | 136 kg | 18 kg |
| 1100 mm | 1115 mm | 118 kg | 15 kg |
| 1200 mm | 1215 mm | 98 kg | 13 kg |
| 1300 mm | 1315 mm | 78 kg | 11 kg |
| 1400 mm | 1415 mm | 58 kg | 8 kg |
| 1500 mm | 1515 mm | 38 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 150 kg | 60 kg |
| 350 mm | 375 mm | 159 kg | 53 kg |
| 400 mm | 415 mm | 166 kg | 48 kg |
| 450 mm | 475 mm | 170 kg | 43 kg |
| 500 mm | 515 mm | 174 kg | 40 kg |
| 550 mm | 575 mm | 176 kg | 36 kg |
| 600 mm | 615 mm | 175 kg | 33 kg |
| 650 mm | 675 mm | 174 kg | 29 kg |
| 700 mm | 715 mm | 172 kg | 27 kg |
| 750 mm | 775 mm | 168 kg | 25 kg |
| 800 mm | 815 mm | 164 kg | 23 kg |
| 850 mm | 875 mm | 158 kg | 22 kg |
| 900 mm | 915 mm | 151 kg | 21 kg |
| 1000 mm | 1015 mm | 136 kg | 18 kg |
| 1100 mm | 1115 mm | 118 kg | 15 kg |
| 1200 mm | 1215 mm | 98 kg | 13 kg |
| 1300 mm | 1315 mm | 78 kg | 11 kg |
| 1400 mm | 1415 mm | 58 kg | 8 kg |
| 1500 mm | 1515 mm | 38 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 250 mm | 275 mm | 140 kg |
| 300 mm | 315 mm | 150 kg |
| 350 mm | 375 mm | 159 kg |
| 400 mm | 415 mm | 166 kg |
| 450 mm | 475 mm | 170 kg |
| 500 mm | 515 mm | 174 kg |
| 550 mm | 575 mm | 176 kg |
| 600 mm | 615 mm | 175 kg |
| 650 mm | 675 mm | 174 kg |
| 700 mm | 715 mm | 172 kg |
| 750 mm | 775 mm | 168 kg |
| 800 mm | 815 mm | 164 kg |
| 850 mm | 875 mm | 158 kg |
| 900 mm | 915 mm | 151 kg |
| 1000 mm | 1015 mm | 136 kg |
| 1100 mm | 1115 mm | 118 kg |
| 1200 mm | 1215 mm | 98 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 150 kg | 60 kg |
| 350 mm | 375 mm | 159 kg | 53 kg |
| 400 mm | 415 mm | 166 kg | 48 kg |
| 450 mm | 475 mm | 170 kg | 43 kg |
| 500 mm | 515 mm | 174 kg | 40 kg |
| 550 mm | 575 mm | 176 kg | 36 kg |
| 600 mm | 615 mm | 175 kg | 33 kg |
| 650 mm | 675 mm | 174 kg | 29 kg |
| 700 mm | 715 mm | 172 kg | 27 kg |
| 750 mm | 775 mm | 168 kg | 25 kg |
| 800 mm | 815 mm | 164 kg | 23 kg |
| 850 mm | 875 mm | 158 kg | 22 kg |
| 900 mm | 915 mm | 151 kg | 21 kg |
| 1000 mm | 1015 mm | 136 kg | 18 kg |
| 1100 mm | 1115 mm | 118 kg | 15 kg |
| 1200 mm | 1215 mm | 98 kg | 13 kg |
| 1300 mm | 1315 mm | 78 kg | 11 kg |
| 1400 mm | 1415 mm | 58 kg | 8 kg |
| 1500 mm | 1515 mm | 38 kg | Contactar con nosotros |
| 1600 mm | 1615 mm | 20 kg | Contactar con nosotros |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 250 mm | 275 mm | 140 kg | 212 kg |
| 300 mm | 315 mm | 180 kg | 197 kg |
| 350 mm | 375 mm | 228 kg | 182 kg |
| 400 mm | 415 mm | 276 kg | 168 kg |
| 450 mm | 475 mm | 320 kg | 156 kg |
| 500 mm | 515 mm | 350 kg | 144 kg |
| 550 mm | 575 mm | 355 kg | 132 kg |
| 600 mm | 615 mm | 350 kg | 124 kg |
| 650 mm | 675 mm | 340 kg | 115 kg |
| 700 mm | 715 mm | 330 kg | 106 kg |
| 750 mm | 775 mm | 319 kg | 98 kg |
| 800 mm | 815 mm | 305 kg | 91 kg |
| 850 mm | 875 mm | 292 kg | 85 kg |
| 900 mm | 915 mm | 277 kg | 79 kg |
| 1000 mm | 1015 mm | 250 kg | 68 kg |
| 1100 mm | 1115 mm | 225 kg | 60 kg |
| 1200 mm | 1215 mm | 202 kg | 53 kg |
| 1300 mm | 1315 mm | 177 kg | 47 kg |
| 1400 mm | 1415 mm | 152 kg | 42 kg |
| 1500 mm | 1515 mm | 130 kg | 38 kg |
| 1600 mm | 1615 mm | 110 kg | 33 kg |
| 1700 mm | 1715 mm | 90 kg | 28 kg |
| 1800 mm | 1815 mm | 70 kg | 23 kg |
| 1900 mm | 1915 mm | 50 kg | 17 kg |
| 2000 mm | 2015 mm | 30 kg | 10 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 180 kg | 197 kg |
| 350 mm | 375 mm | 228 kg | 182 kg |
| 400 mm | 415 mm | 276 kg | 168 kg |
| 450 mm | 475 mm | 320 kg | 156 kg |
| 500 mm | 515 mm | 350 kg | 144 kg |
| 550 mm | 575 mm | 355 kg | 132 kg |
| 600 mm | 615 mm | 350 kg | 124 kg |
| 650 mm | 675 mm | 340 kg | 115 kg |
| 700 mm | 715 mm | 330 kg | 106 kg |
| 750 mm | 775 mm | 319 kg | 98 kg |
| 800 mm | 815 mm | 305 kg | 91 kg |
| 850 mm | 875 mm | 292 kg | 85 kg |
| 900 mm | 915 mm | 277 kg | 79 kg |
| 1000 mm | 1015 mm | 250 kg | 68 kg |
| 1100 mm | 1115 mm | 225 kg | 60 kg |
| 1200 mm | 1215 mm | 202 kg | 53 kg |
| 1300 mm | 1315 mm | 177 kg | 47 kg |
| 1400 mm | 1415 mm | 152 kg | 42 kg |
| 1500 mm | 1515 mm | 130 kg | 38 kg |
| 1600 mm | 1615 mm | 110 kg | 33 kg |
| 1700 mm | 1715 mm | 90 kg | 28 kg |
| 1800 mm | 1815 mm | 70 kg | 23 kg |
| 1900 mm | 1915 mm | 50 kg | 17 kg |
| 2000 mm | 2015 mm | 30 kg | 10 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 250 mm | 275 mm | 140 kg | 212 kg |
| 300 mm | 315 mm | 180 kg | 197 kg |
| 350 mm | 375 mm | 228 kg | 182 kg |
| 400 mm | 415 mm | 276 kg | 168 kg |
| 450 mm | 475 mm | 320 kg | 156 kg |
| 500 mm | 515 mm | 350 kg | 144 kg |
| 550 mm | 575 mm | 355 kg | 132 kg |
| 600 mm | 615 mm | 350 kg | 124 kg |
| 650 mm | 675 mm | 340 kg | 115 kg |
| 700 mm | 715 mm | 330 kg | 106 kg |
| 750 mm | 775 mm | 319 kg | 98 kg |
| 800 mm | 815 mm | 305 kg | 91 kg |
| 850 mm | 875 mm | 292 kg | 85 kg |
| 900 mm | 915 mm | 277 kg | 79 kg |
| 1000 mm | 1015 mm | 250 kg | 68 kg |
| 1100 mm | 1115 mm | 225 kg | 60 kg |
| 1200 mm | 1215 mm | 202 kg | 53 kg |
| 1300 mm | 1315 mm | 177 kg | 47 kg |
| 1400 mm | 1415 mm | 152 kg | 42 kg |
| 1500 mm | 1515 mm | 130 kg | 38 kg |
| 1600 mm | 1615 mm | 110 kg | 33 kg |
| 1700 mm | 1715 mm | 90 kg | 28 kg |
| 1800 mm | 1815 mm | 70 kg | 23 kg |
| 1900 mm | 1915 mm | 50 kg | 17 kg |
| 2000 mm | 2015 mm | 30 kg | 10 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 180 kg | 197 kg |
| 350 mm | 375 mm | 228 kg | 182 kg |
| 400 mm | 415 mm | 276 kg | 168 kg |
| 450 mm | 475 mm | 320 kg | 156 kg |
| 500 mm | 515 mm | 350 kg | 144 kg |
| 550 mm | 575 mm | 355 kg | 132 kg |
| 600 mm | 615 mm | 350 kg | 124 kg |
| 650 mm | 675 mm | 340 kg | 115 kg |
| 700 mm | 715 mm | 330 kg | 106 kg |
| 750 mm | 775 mm | 319 kg | 98 kg |
| 800 mm | 815 mm | 305 kg | 91 kg |
| 850 mm | 875 mm | 292 kg | 85 kg |
| 900 mm | 915 mm | 277 kg | 79 kg |
| 1000 mm | 1015 mm | 250 kg | 68 kg |
| 1100 mm | 1115 mm | 225 kg | 60 kg |
| 1200 mm | 1215 mm | 202 kg | 53 kg |
| 1300 mm | 1315 mm | 177 kg | 47 kg |
| 1400 mm | 1415 mm | 152 kg | 42 kg |
| 1500 mm | 1515 mm | 130 kg | 38 kg |
| 1600 mm | 1615 mm | 110 kg | 33 kg |
| 1700 mm | 1715 mm | 90 kg | 28 kg |
| 1800 mm | 1815 mm | 70 kg | 23 kg |
| 1900 mm | 1915 mm | 50 kg | 17 kg |
| 2000 mm | 2015 mm | 30 kg | 10 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna |
| 300 mm | 315 mm | 180 kg |
| 350 mm | 375 mm | 228 kg |
| 400 mm | 415 mm | 276 kg |
| 450 mm | 475 mm | 320 kg |
| 500 mm | 515 mm | 350 kg |
| 550 mm | 575 mm | 355 kg |
| 600 mm | 615 mm | 350 kg |
| 650 mm | 675 mm | 340 kg |
| 700 mm | 715 mm | 330 kg |
| 750 mm | 775 mm | 319 kg |
| 800 mm | 815 mm | 305 kg |
| 850 mm | 875 mm | 292 kg |
| 900 mm | 915 mm | 277 kg |
| 1000 mm | 1015 mm | 250 kg |
| 1100 mm | 1115 mm | 225 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| 1200 mm | 1215 mm | 202 kg |
| Luzera itxia | Garapena/ibilbide erabilgarria | Zeharka kargatzeko gaitasuna | Planoan kargatzeko gaitasuna |
| 300 mm | 315 mm | 180 kg | 197 kg |
| 350 mm | 375 mm | 228 kg | 182 kg |
| 400 mm | 415 mm | 276 kg | 168 kg |
| 450 mm | 475 mm | 320 kg | 156 kg |
| 500 mm | 515 mm | 350 kg | 144 kg |
| 550 mm | 575 mm | 355 kg | 132 kg |
| 600 mm | 615 mm | 350 kg | 124 kg |
| 650 mm | 675 mm | 340 kg | 115 kg |
| 700 mm | 715 mm | 330 kg | 106 kg |
| 750 mm | 775 mm | 319 kg | 98 kg |
| 800 mm | 815 mm | 305 kg | 91 kg |
| 850 mm | 875 mm | 292 kg | 85 kg |
| 900 mm | 915 mm | 277 kg | 79 kg |
| 1000 mm | 1015 mm | 250 kg | 68 kg |
| 1100 mm | 1115 mm | 225 kg | 60 kg |
| 1200 mm | 1215 mm | 202 kg | 53 kg |
| 1300 mm | 1315 mm | 177 kg | 47 kg |
| 1400 mm | 1415 mm | 152 kg | 42 kg |
| 1500 mm | 1515 mm | 130 kg | 38 kg |
| 1600 mm | 1615 mm | 110 kg | 33 kg |
| 1700 mm | 1715 mm | 90 kg | 28 kg |
| 1800 mm | 1815 mm | 70 kg | 23 kg |
| 1900 mm | 1915 mm | 50 kg | 17 kg |
| 2000 mm | 2015 mm | 30 kg | 10 kg |
Ezaugarriak
3 gorputzeko gida teleskopikoek hedadura/ibilbide erabilgarri osoa eskaintzen dute (itxian duten luzeraren parekoa). Gida horiek egokiak dira elementu mugikorra erabat atera behar den aplikazioetarako.
Gehienak altzairuan, aluminioan eta altzairu herdoilgaitzean daude eskuragarri.
Gainazaleko tratamendu ugari daude gogortasun handiagoa emateko, tenperatura altuak/baxuak jasateko, baita korrosioaren aurkako tratamenduak ere.
- Gainazaleko gogortasun handiagoa.
- Tenperatura altu/baxuetan erabiltzeko tratamenduak.
- Korrosioaren aurkako tratamenduak.
Aukera hauek ere badaude:
- Irekitzeko eta/edo ixteko blokeoak.
- Desmuntagarriak.
- Karrera bikoitza/bi norabidekoak.
Luzera estandarrez gain, Chambrelanek beste edozein luzera fabrikatu dezake, baita luzapen/ibilbide erabilgarria, zulagailu bereziak eta abar laburtu edo luzatu ere.
Erabilerak
- Bateria-kaxak kentzea (trenak eta autobusak).
- Abiazioa, itsas armada eta defentsa.
- Interiorismoa.
- Suteen kontrako eta salbamenduko ibilgailuak.
- Vendingeko makinak.
- Ate automatikoak (garraiobide publikoak, merkataritza-zentroak...).
- Makinen babesa.
- Rack-ak.
Produktuaren irudiak
Previous
Next
Produktuaren irudiak
Previous
Next
