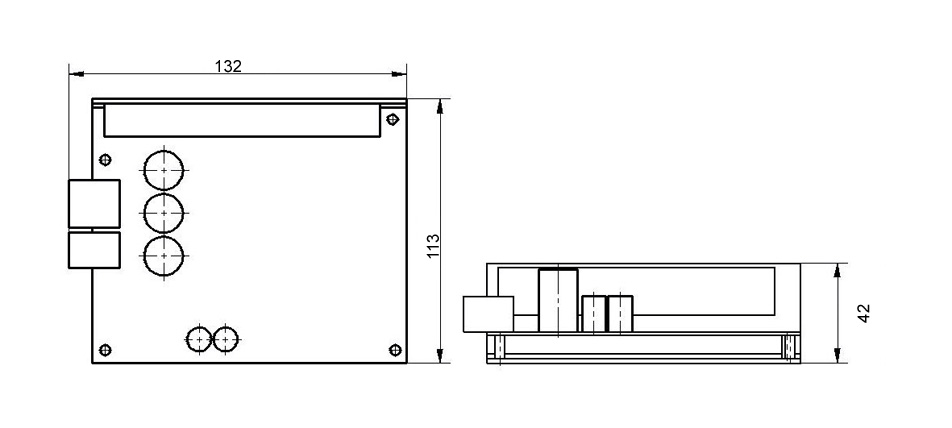

Inverter e@syDrive® 4310 (IP 00)

Extra low voltage high-frequency inverter in enclosed design (IP 00) with pulse width modulation (PWM) for controlling of synchronous/asynchronous motor spindles up to 640 VA.

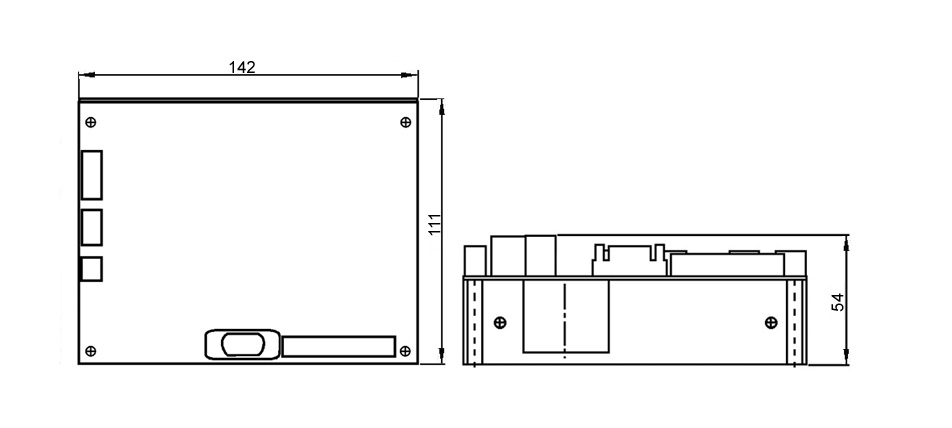

Inverter e@syDrive® 4320 (IP 00)

Extra low voltage high-frequency inverter in enclosed design (IP 00) with SVC and HSPAM/UF modulation for controlling of synchronous/asynchronous motor spindles up to 580 VA.

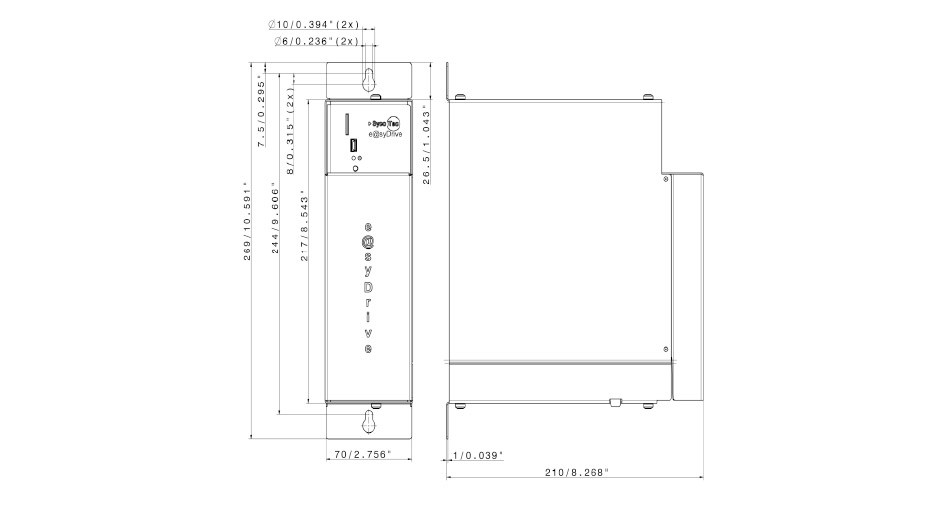

Inverter e@syDrive® 4624

Extra low voltage high-frequency inverter with pulse amplitude modulation (PAM) for controlling synchronous/asynchronous motor spindles and small drives up to 300 VA.

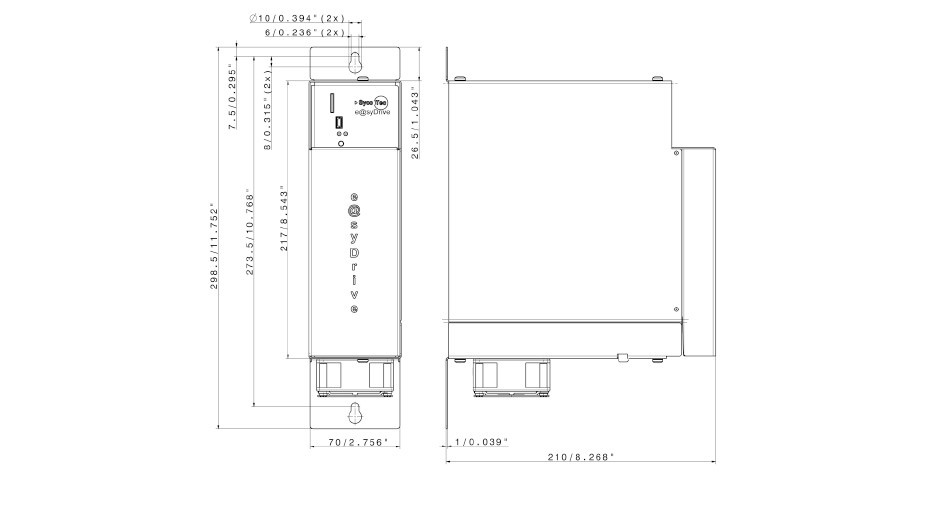

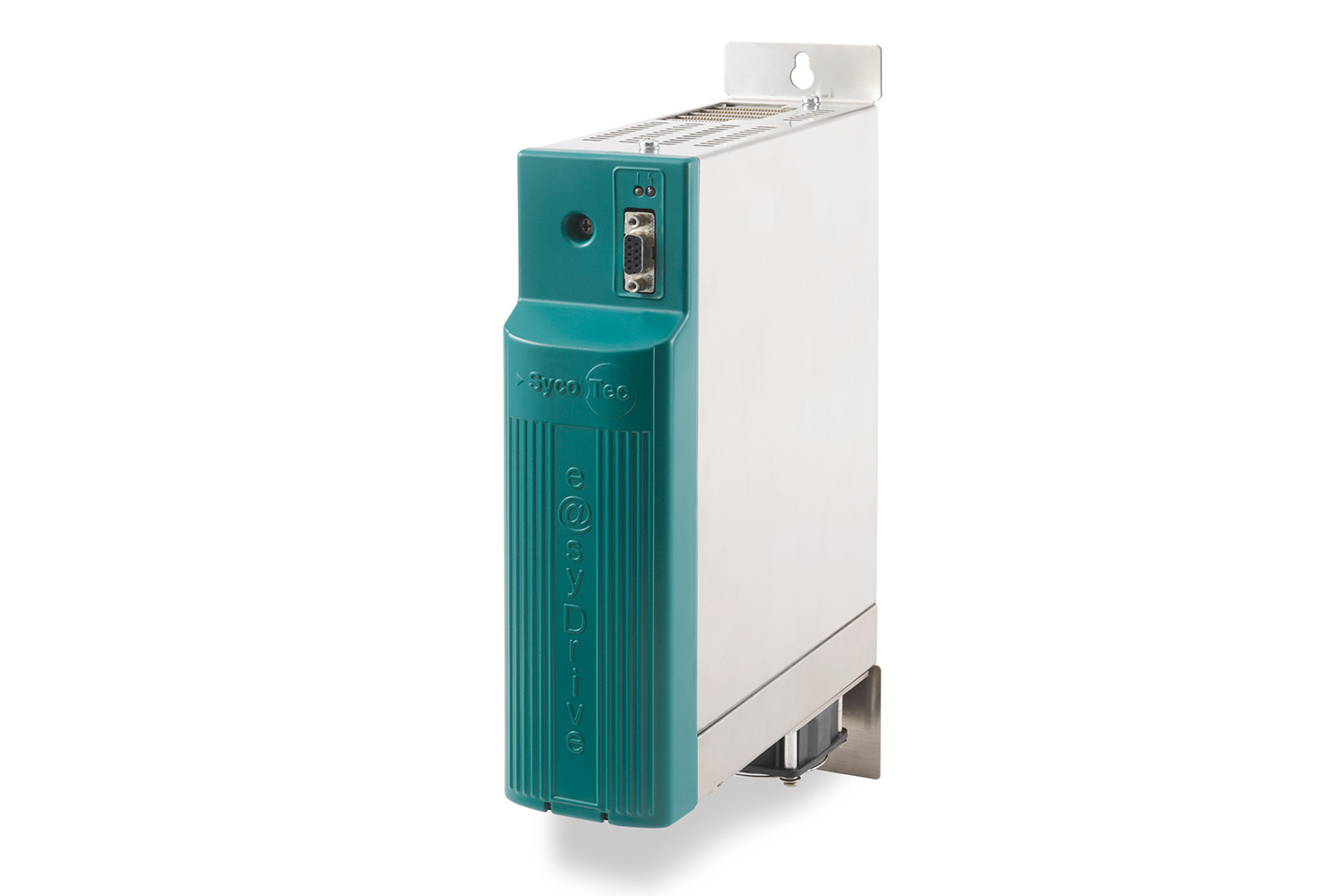

Inverter e@syDrive® 4625

Extra low voltage high-frequency inverter with pulse amplitude modulation (PAM) for controlling synchronous/asynchronous motor spindles and small drives up to 600 VA.

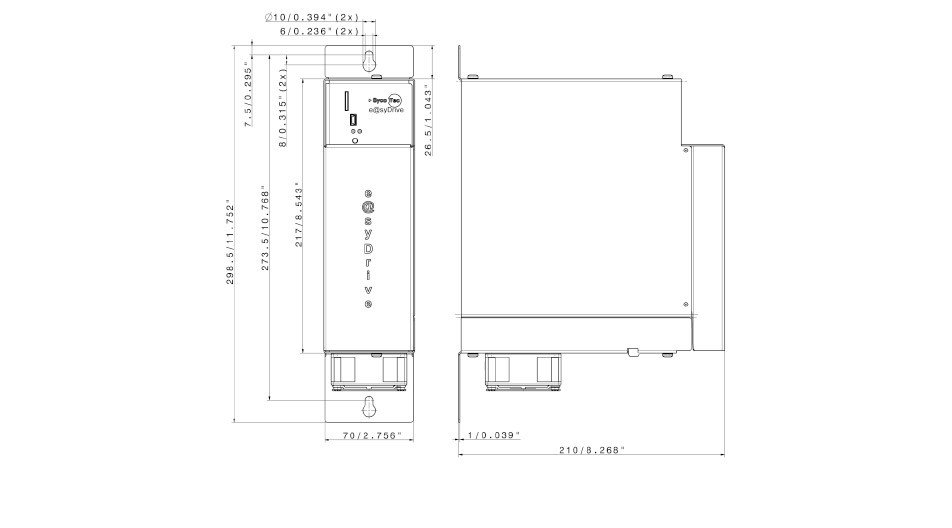

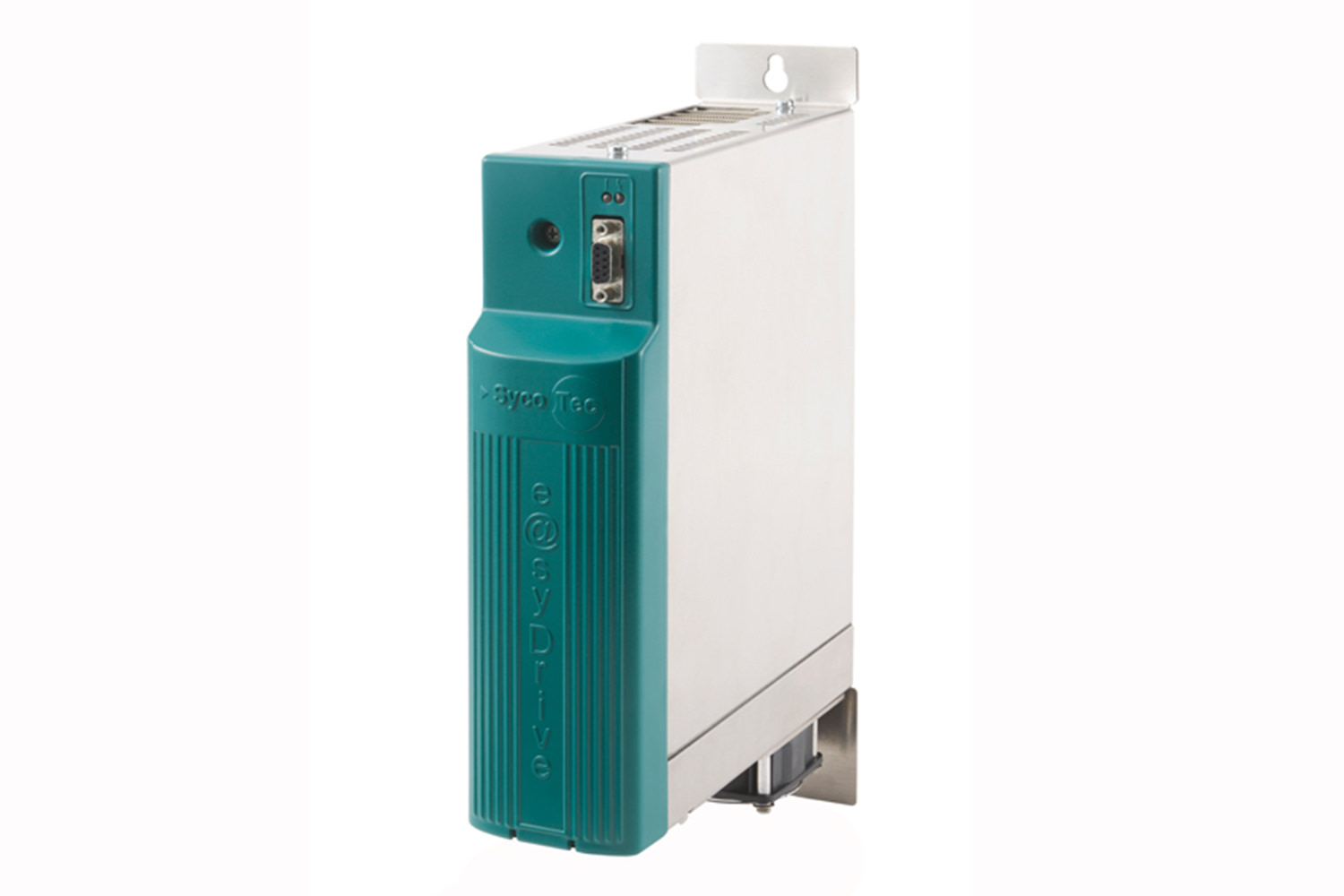

Inverter e@syDrive® 4626

Extra low voltage high-frequency inverter with pulse amplitude modulation (PAM) for controlling synchronous/asynchronous motor spindles and small drives up to 1,000 VA.

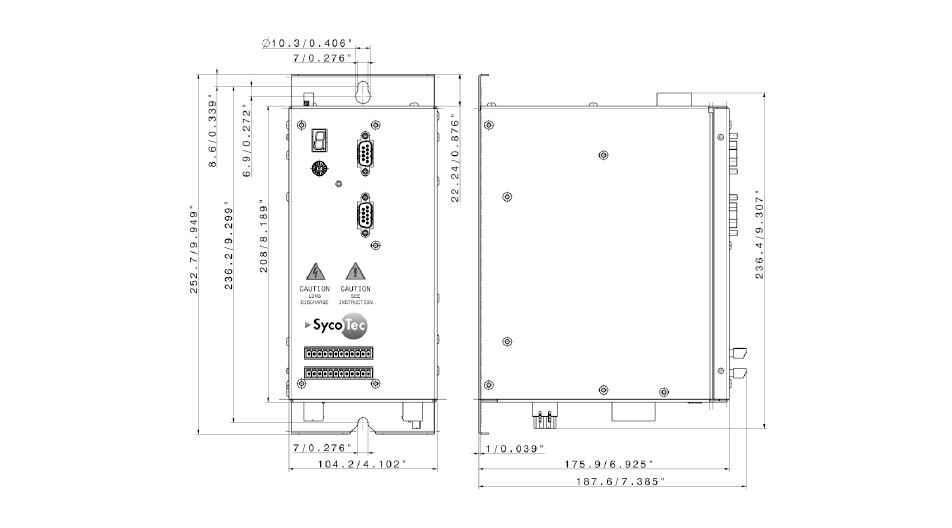

Inverter e@syDrive® 4638

Extra low voltage high-frequency inverter with SVC, HSPAM/VF, HSBLOCK/FPAM and HSPWM modulation for controlling synchronous/asynchronous motor spindles and small drives up to 3,800 VA.

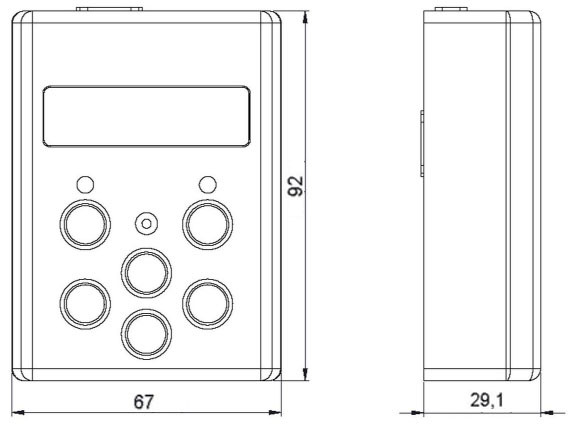

Operating device e@syDrive® 4638 control

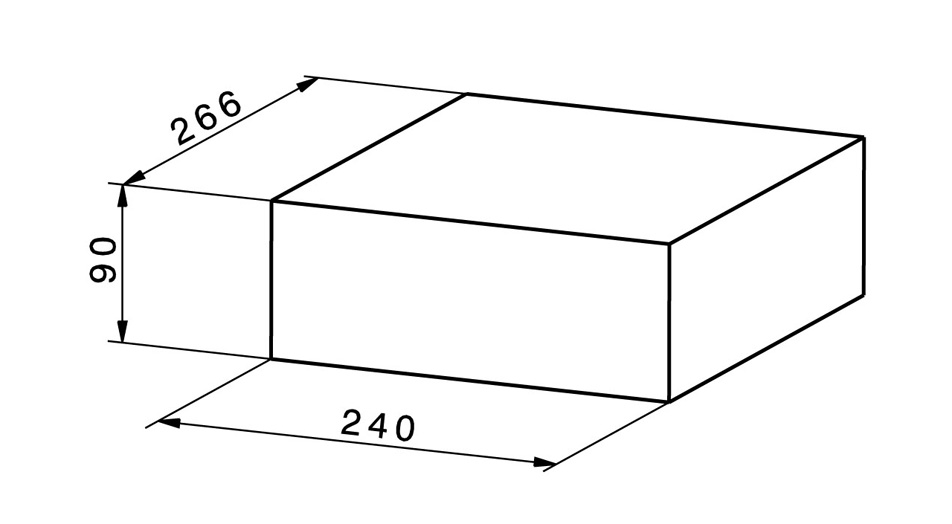

Inverter e@syDrive® TV 4504

Low voltage high-frequency inverter in table version with output voltages up to 60 V. As stand-alone solution or as expansion module for existing machine tools for controlling synchronous/asynchronous motor spindles and motors up to 480 VA.

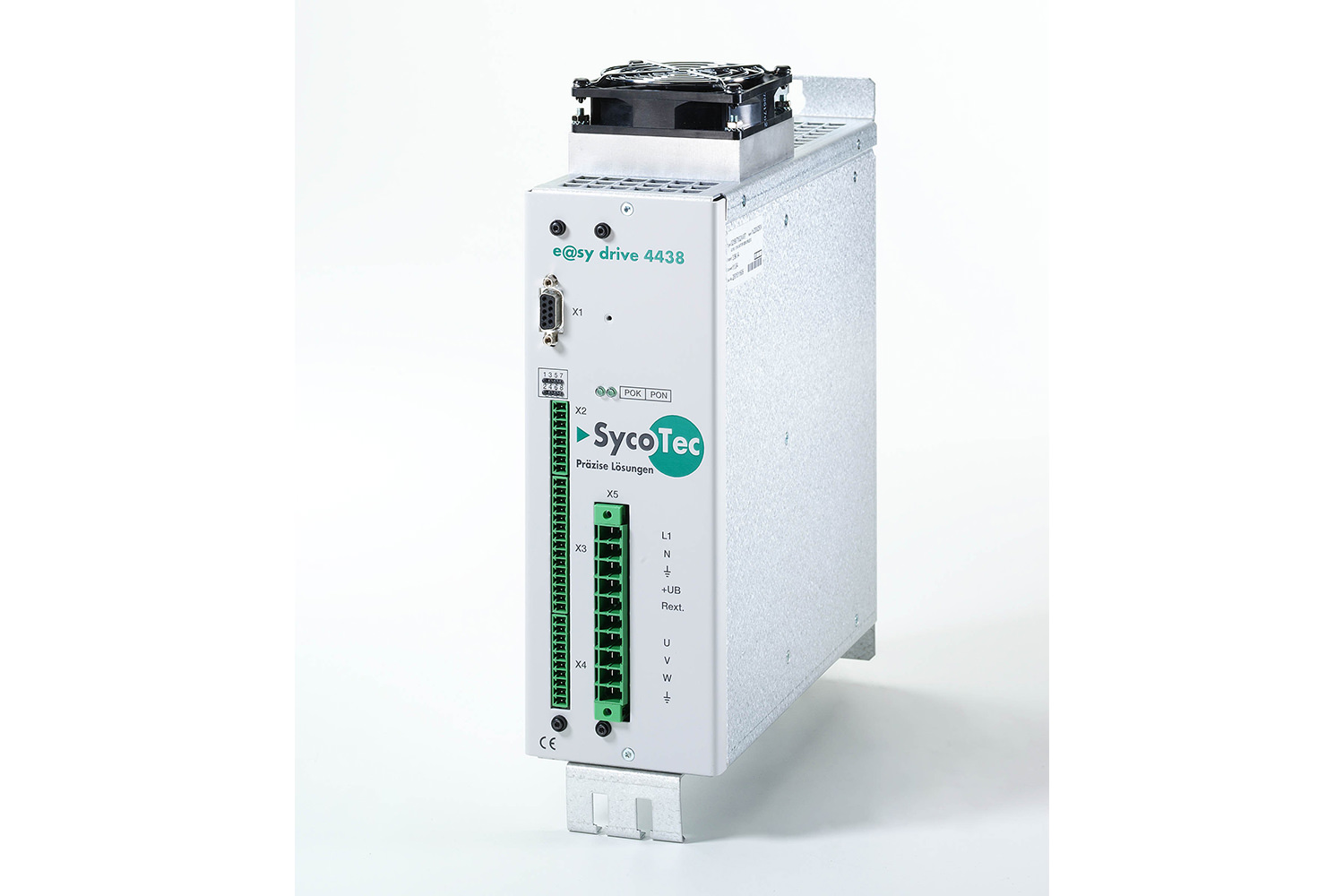

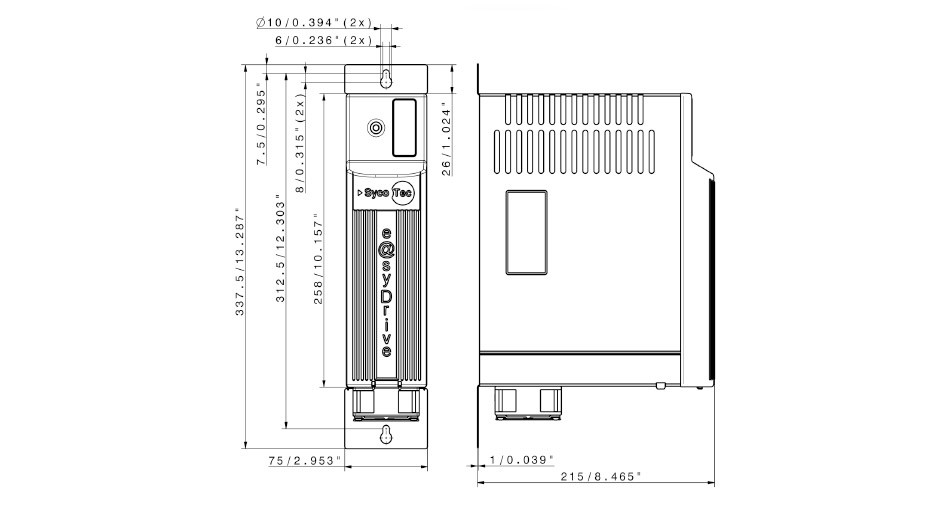

Power supply e@syDrive® 4428

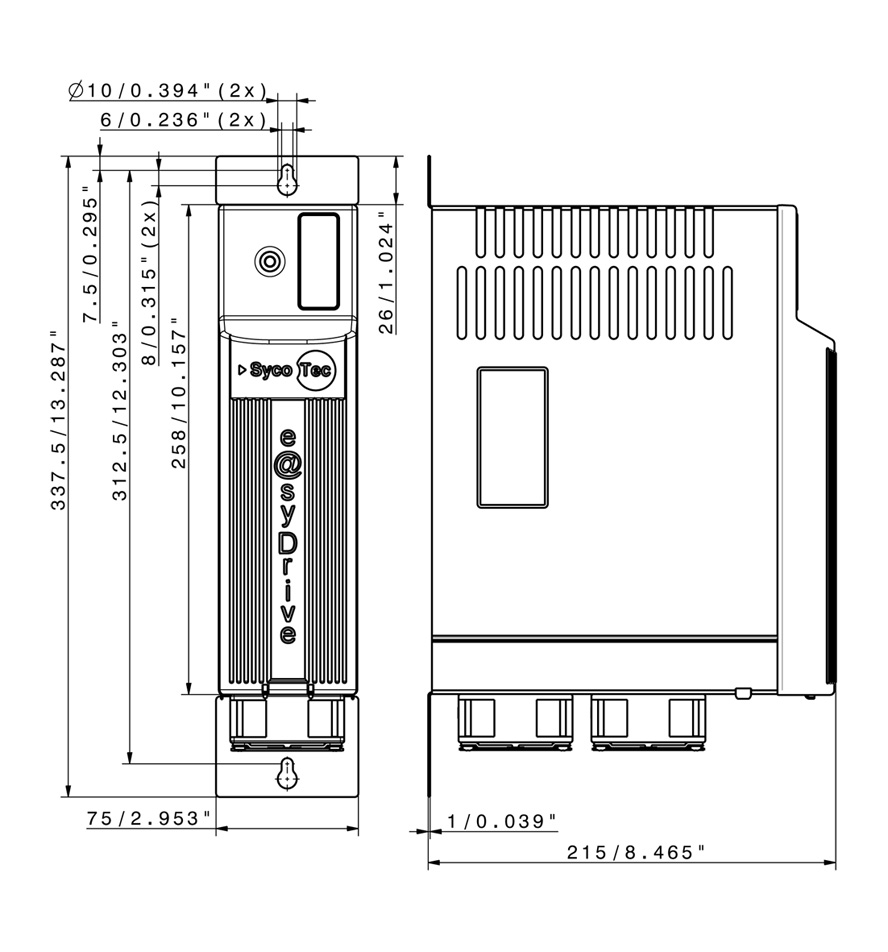

Power supplye@syDrive® 4429

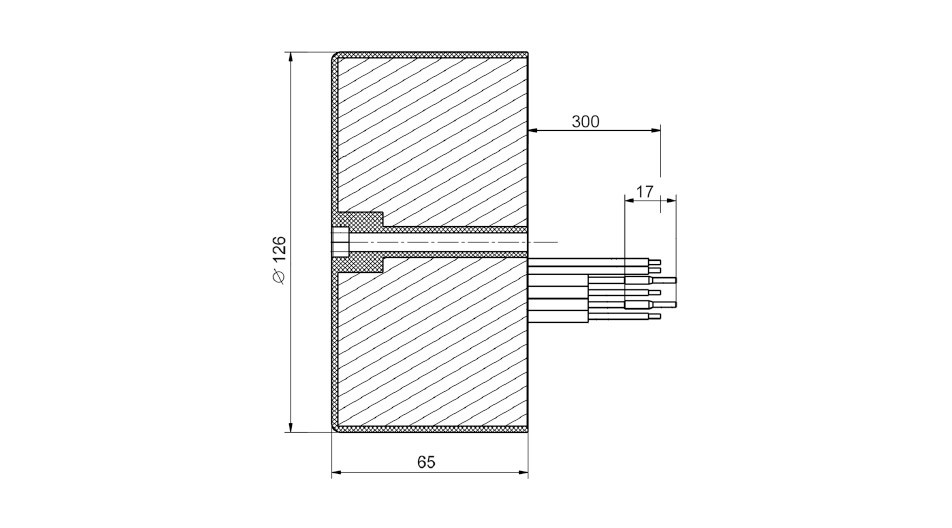

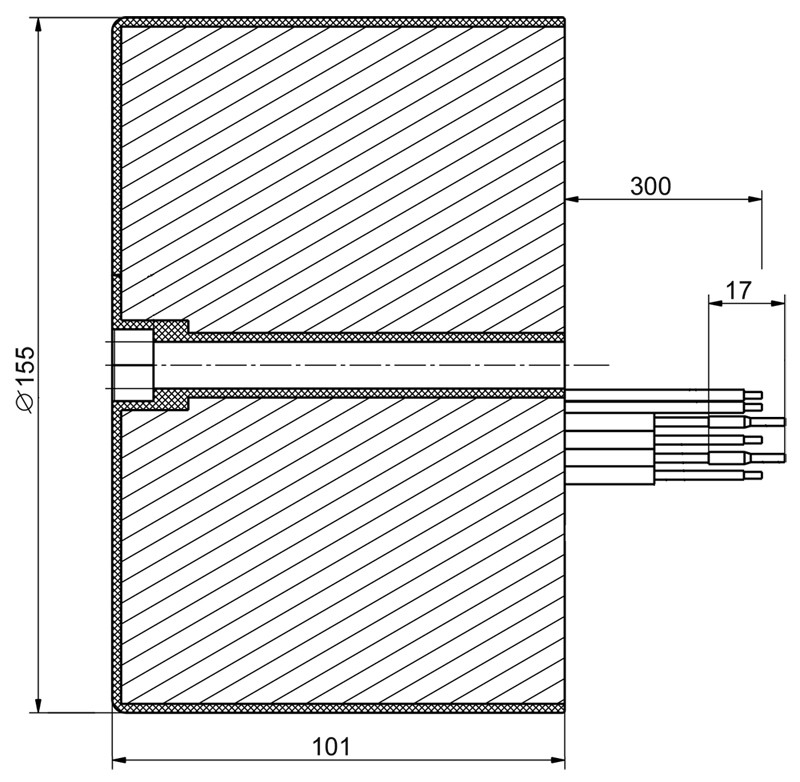

Transformer 360 VA

Transformer 1,1 kVA

Transformer 1,3 kVA

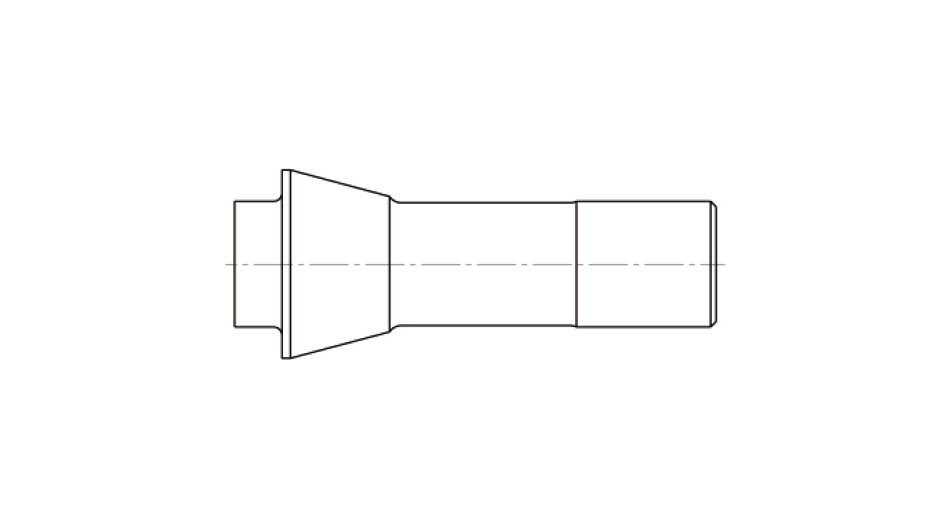

Chuck C1-8

Dead length chuck for motor spindle 4015, 4026

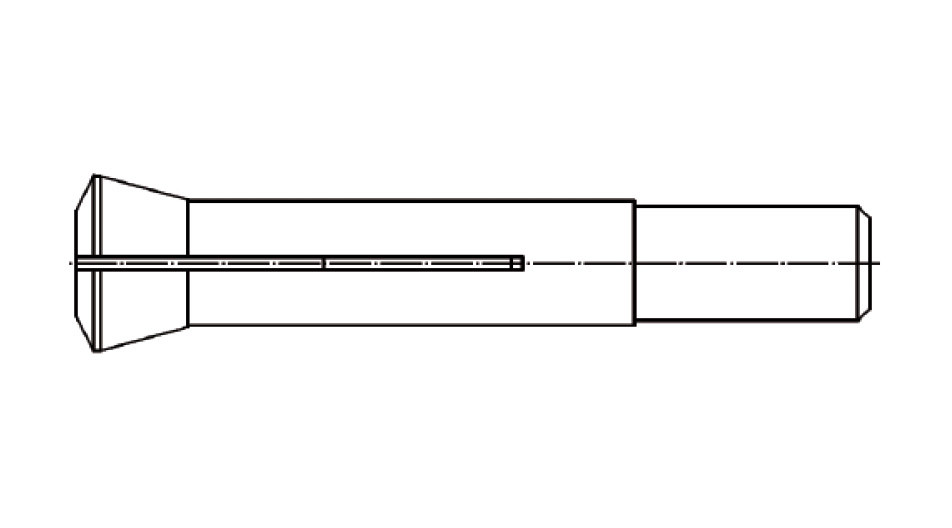

Chuck C2

Draw-in chuck for motor spindle 4025

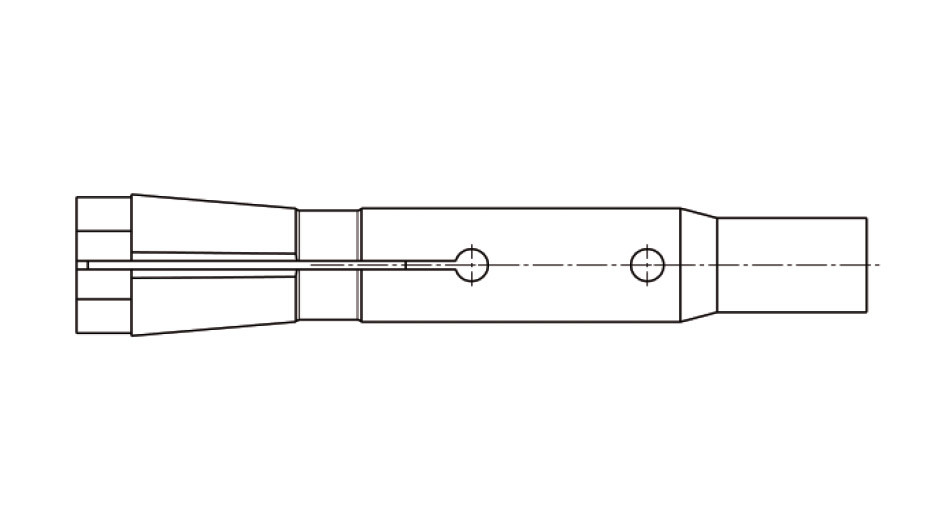

Chuck C3

Draw-in chuck for motor spindle 4033, 4036

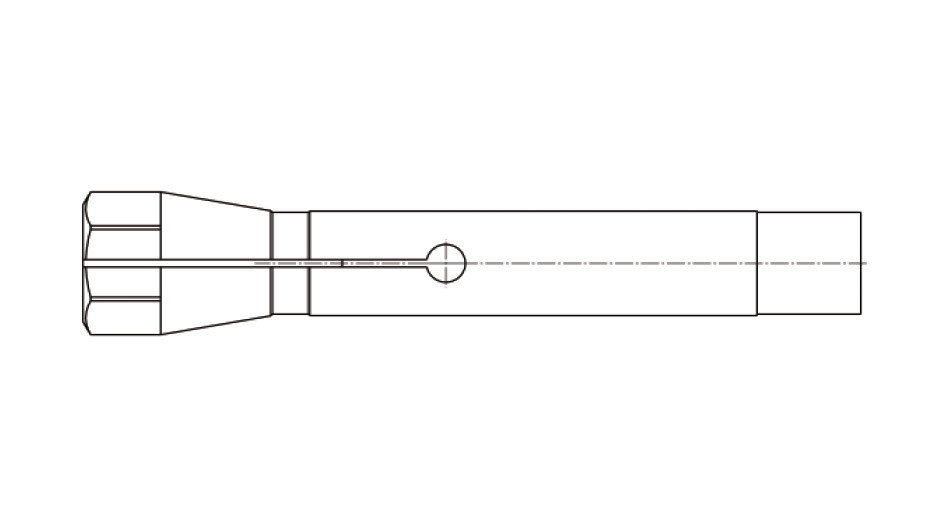

Chuck C4

Chuck C4 Draw-in chuck for motor spindle 4040, 4041, 4060, 4061

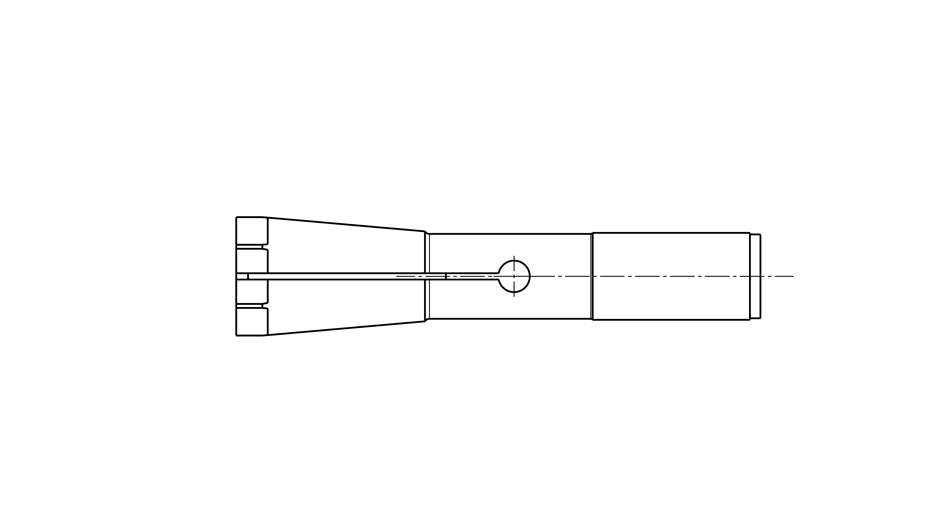

Chuck C5

Draw-in chuck for motor spindle 5045

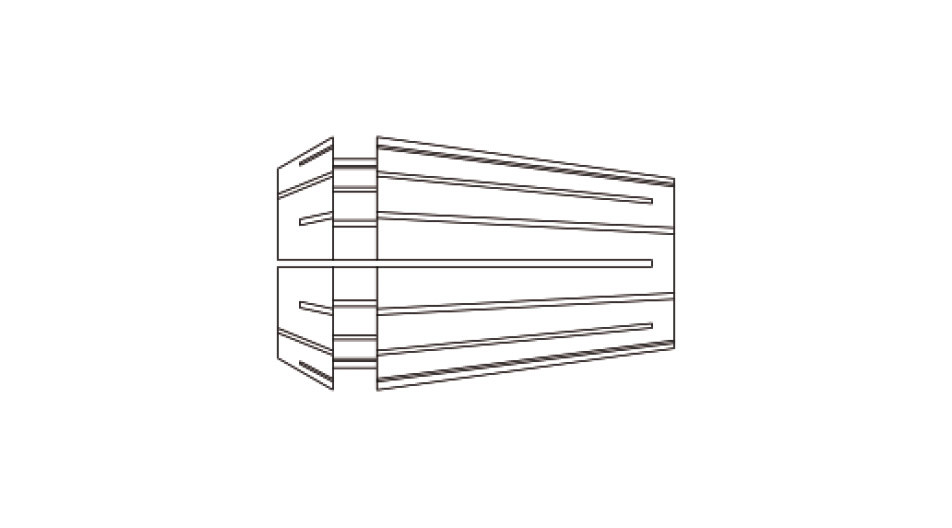

Chuck ER8

Dead length chuck für motor spindle 4033 ER

Chuck ER11

Dead length chuck für motor spindle 4036 ER, 4040 ER, 4060 ER, 5045 ER

Chuck ETS12

Dead length chuck for motor spindle 4036 ER, 4060 ER, 5045 ER (Compatible with ER11)

Chuck ER16

Dead length chuck for motor spindle 4064, 50100

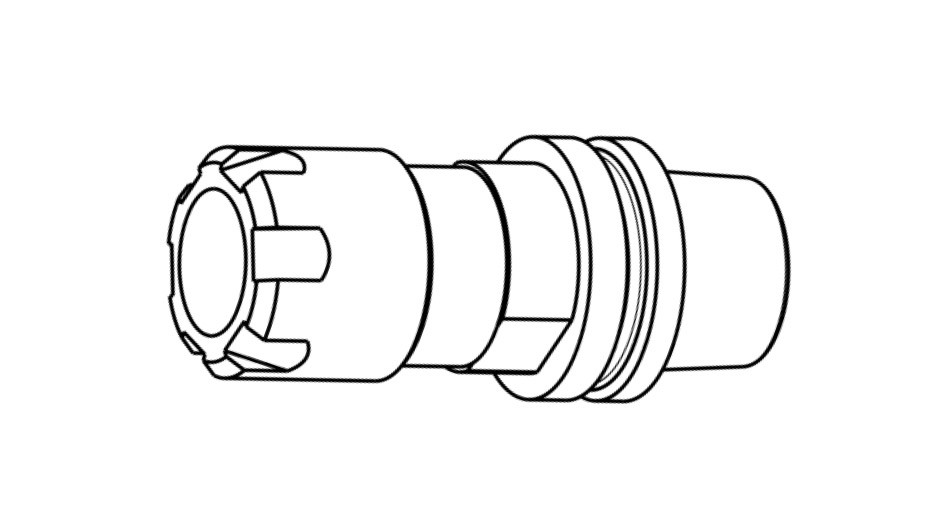

Tool holder HSK-E25xER16 (M19x1)

Dead length chuck for motor spindle 4064, 50100

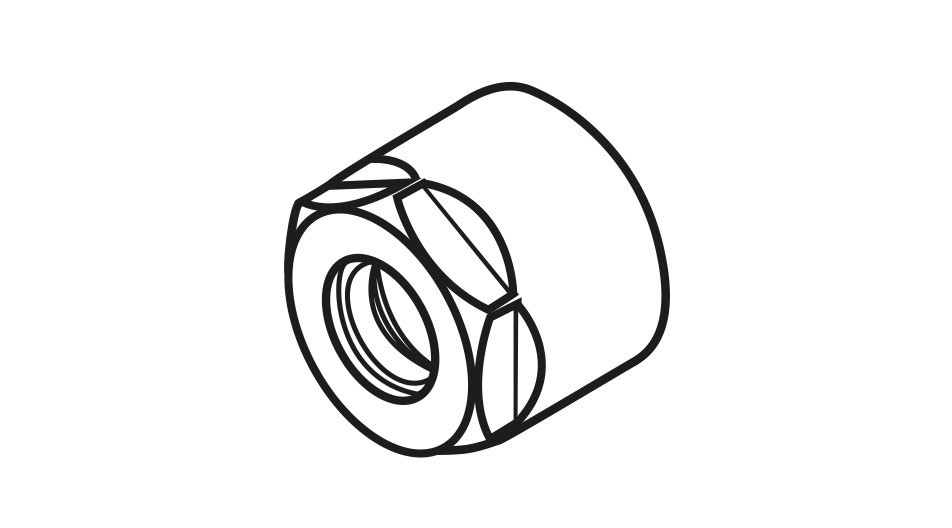

Clamping nut C1-8 (M10x0.75)

Motor spindle 4015, 4026

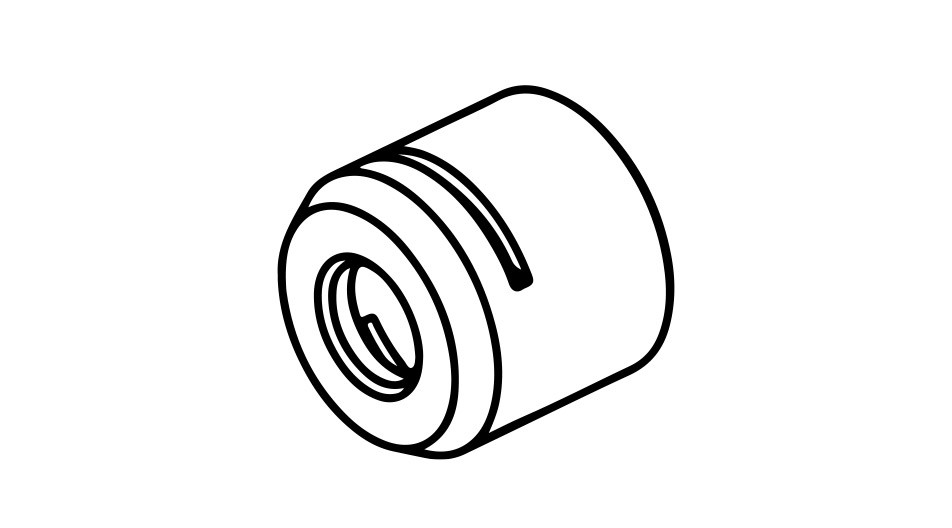

Clamping nut ER8 MS (M10x0.75)

Motor spindle 4033 ER
(MS = High Speed)

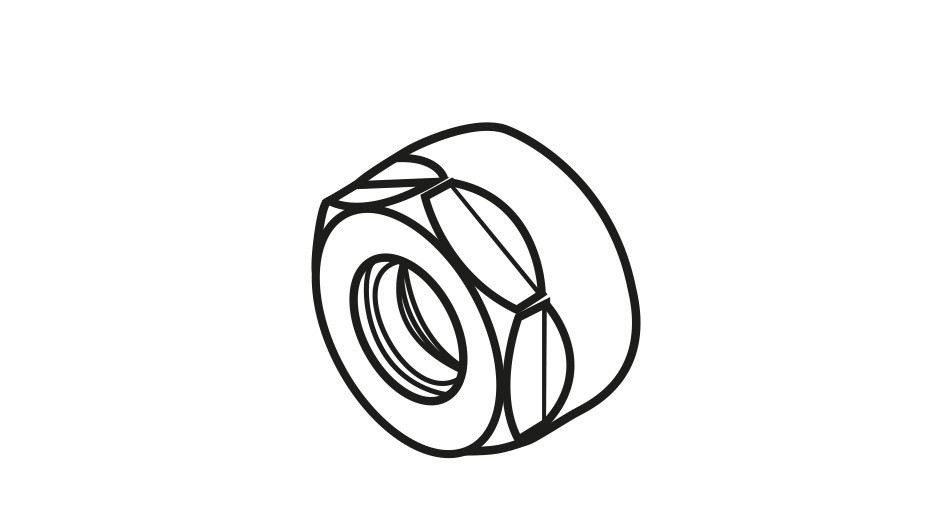

Clamping nut ER11 M (M13x0.75)

Motor spindle 4036 ER, 4040 ER, 5045 ER

Clamping nut ER11 (M14x0.75)

Motor spindle 4060 ER

Clamping nut ETS12.1 (M13x0.75)

Motor spindle 4036 ER, 4040 ER, 5045 ER
(Compatible with ER11 M)

Clamping nut ETS12 (M14x0.75)

Motor spindle 4060 ER
(Compatible with ER11)

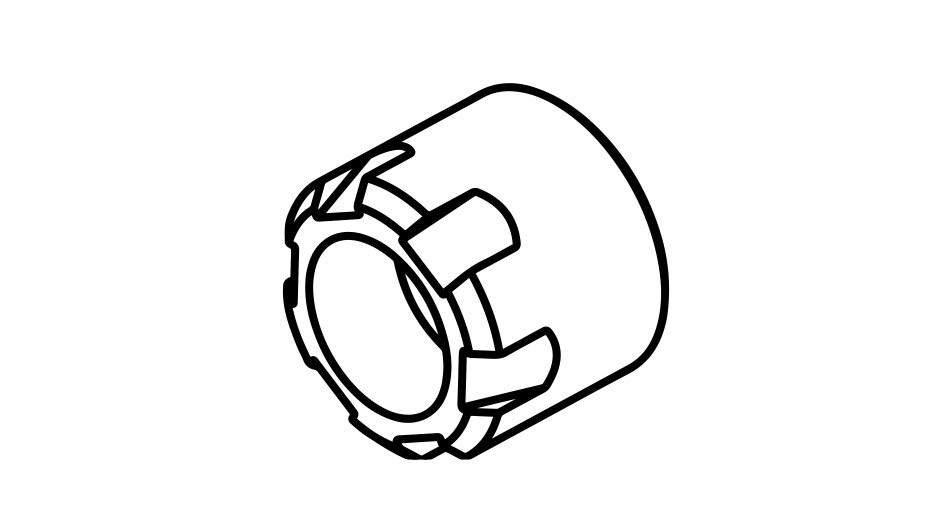

Clamping nut ER16 M (M19x1)

Motor spindle 4064, 50100
(M = minimum outer diameter)

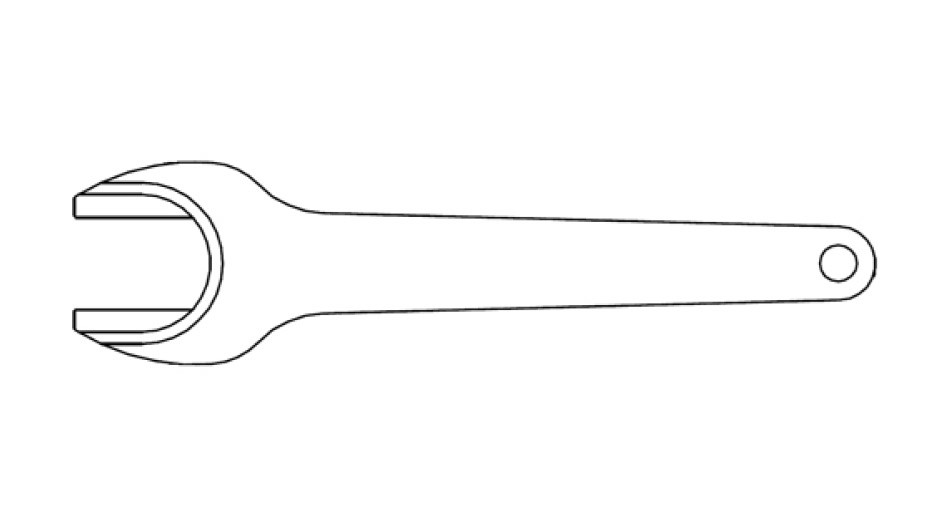

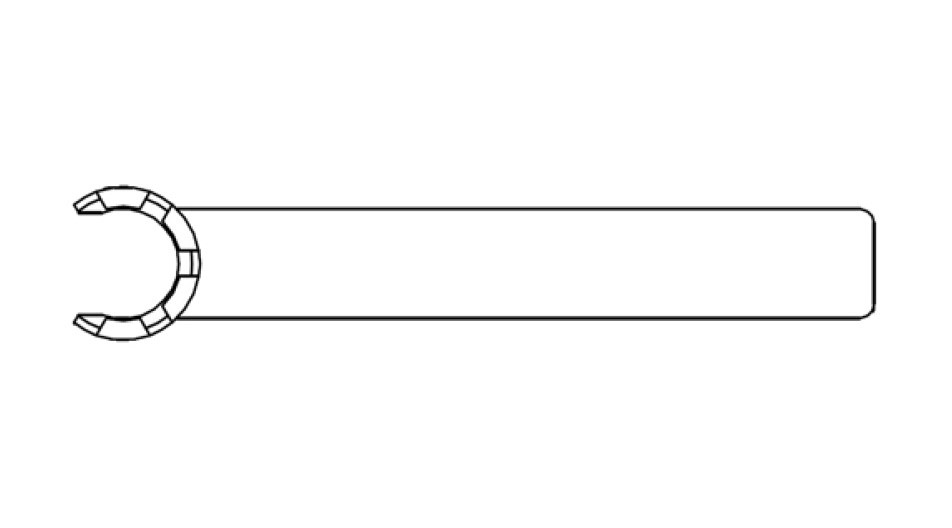

Tightening key E8 MS

Clamping nut ER8 MS

Tightening Key E11 M (M13x0.75)

Clamping nut ER11 M

Tightening key E16 M

Clamping nut ER16 M

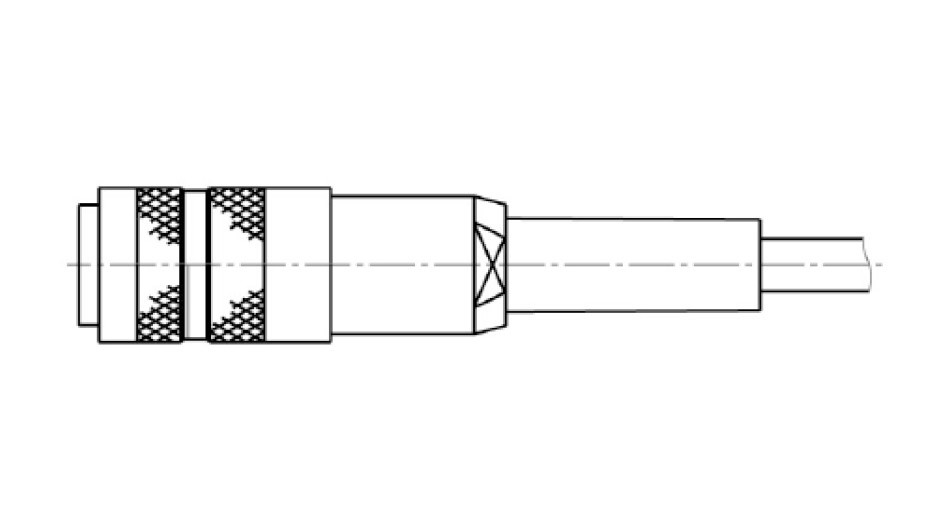

Connecting cable 3PM

Motor spindle 4025 AC, 4026

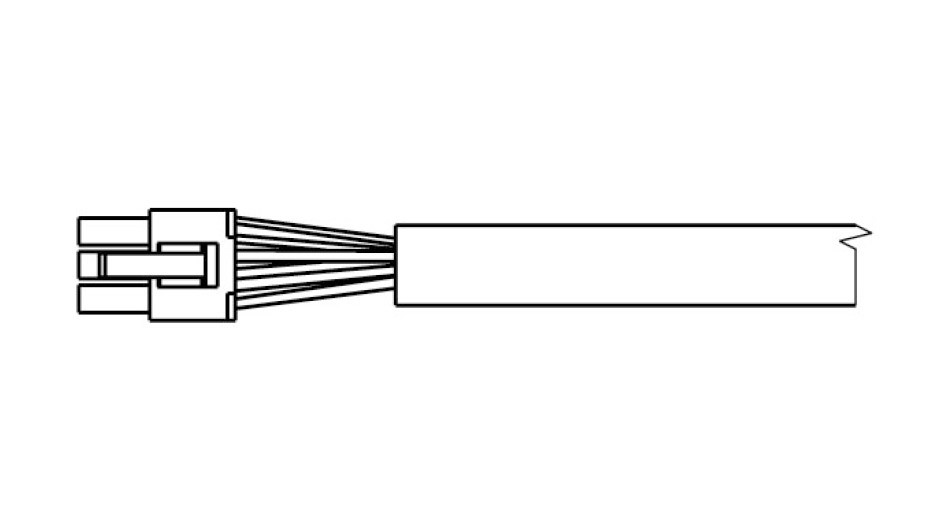

Connecting cable MFJ

Motor spindle 4033 AC-ESD-LS-ST-60-CS

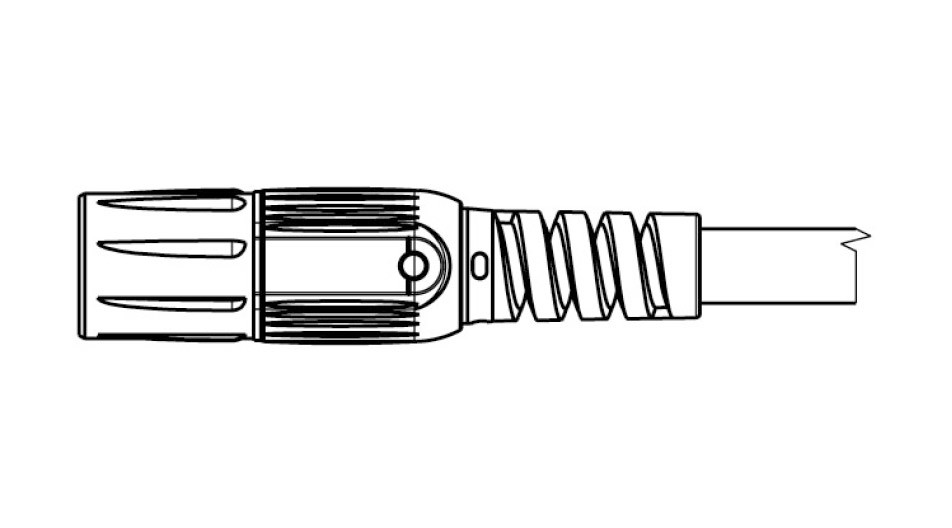

Connecting cable 915

Motor spindle 4033 AC/DC, 4036 DC-T

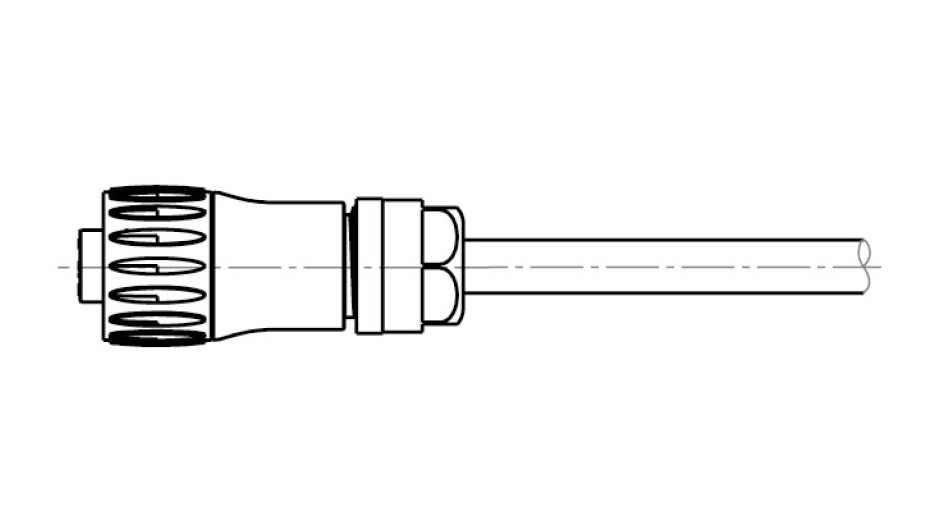

Connecting cable EM-C16

Motor spindle 4040 AC, 4041 AC, 4060 AC

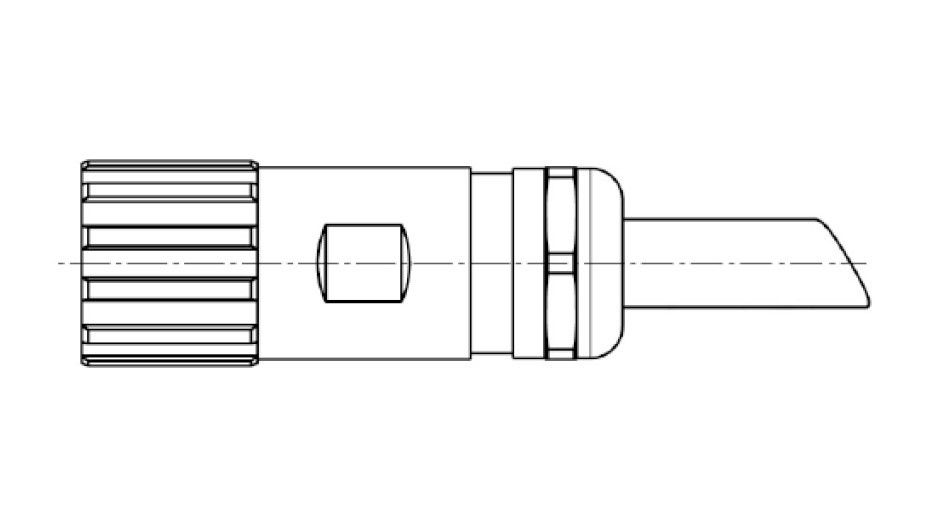

Connecting cable M23

Motor spindle 4040 DC, 4041 DC, 4060 AC/DC, 4060 ER, 4061 AC/DC, 5045 AC/DC 50100

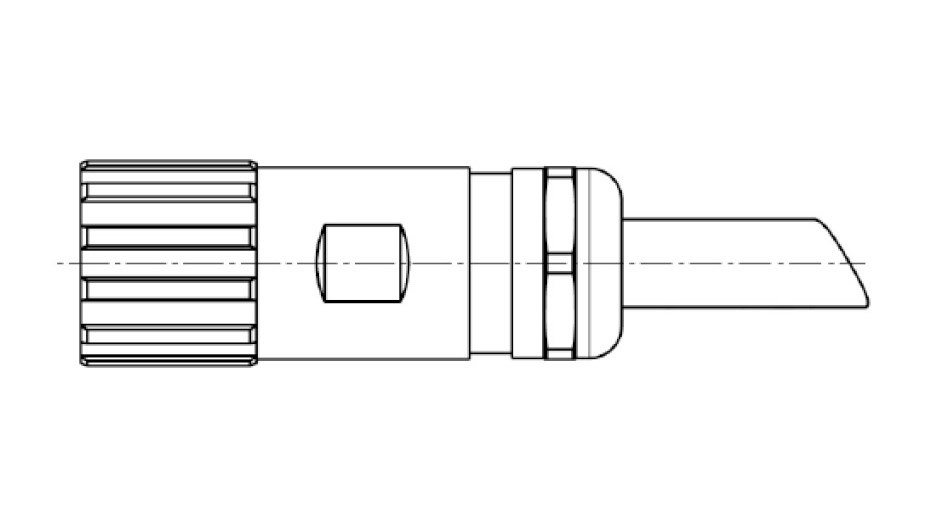

Connecting cable M23-QL

Motor spindle 4040 DC, 4041 DC, 4060 AC/DC, 4060 ER, 4061 AC/DC, 5045 AC/DC, 50100 (QL = Quick lock)

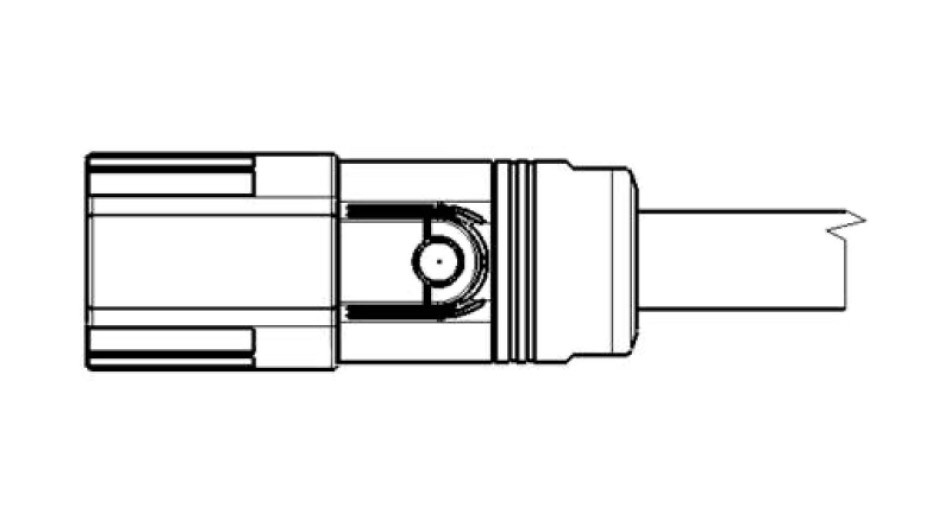

Connecting cable M17-Power

Motor spindle 4064 DC

Connecting cable M17-Sensor

Motor spindle 4064 DC

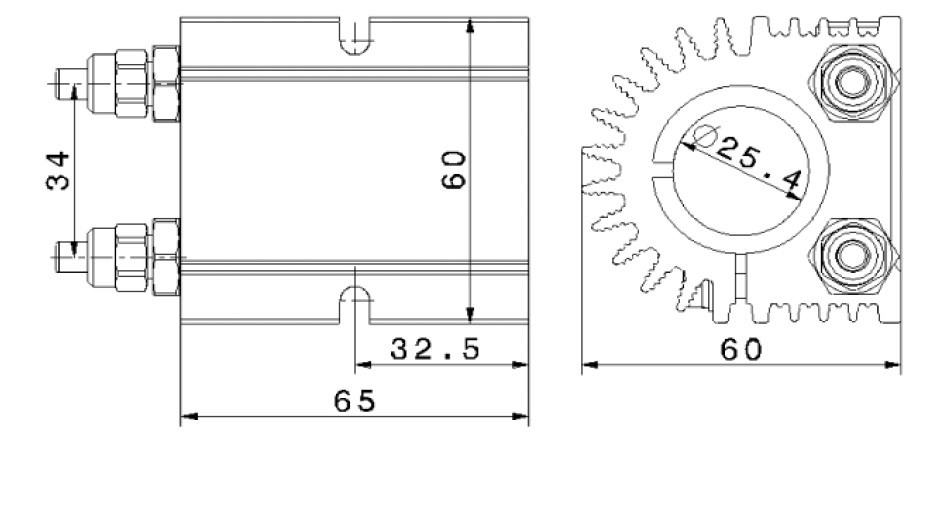

Clamping bracket 4825/25,4

Clamping diameter 25,4 mm / 1

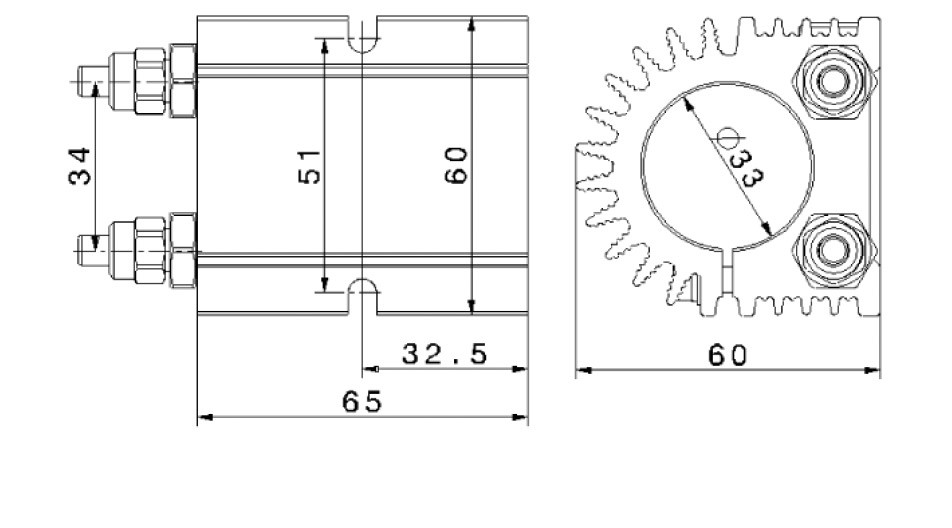

Clamping bracket 4825/33

Clamping diameter 33 mm

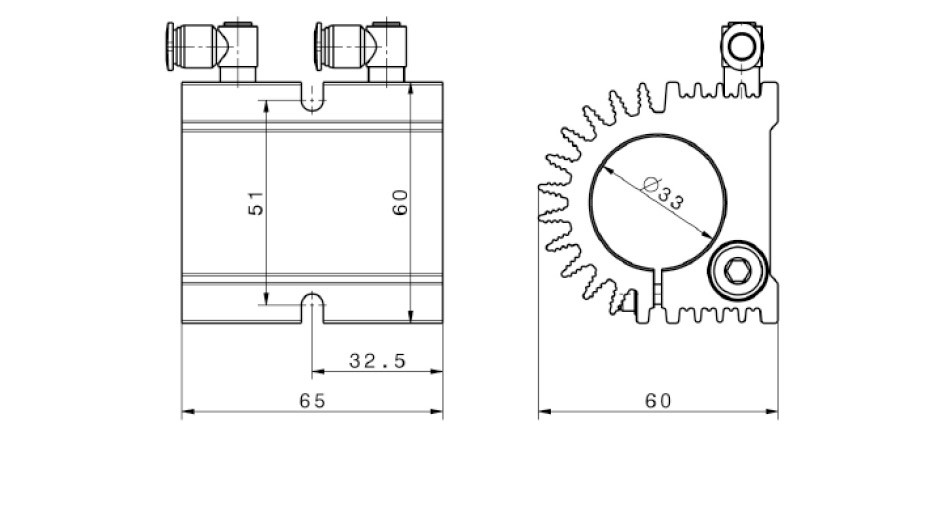

Clamping bracket 4825/33 ASE

Clamping diameter 33 mm

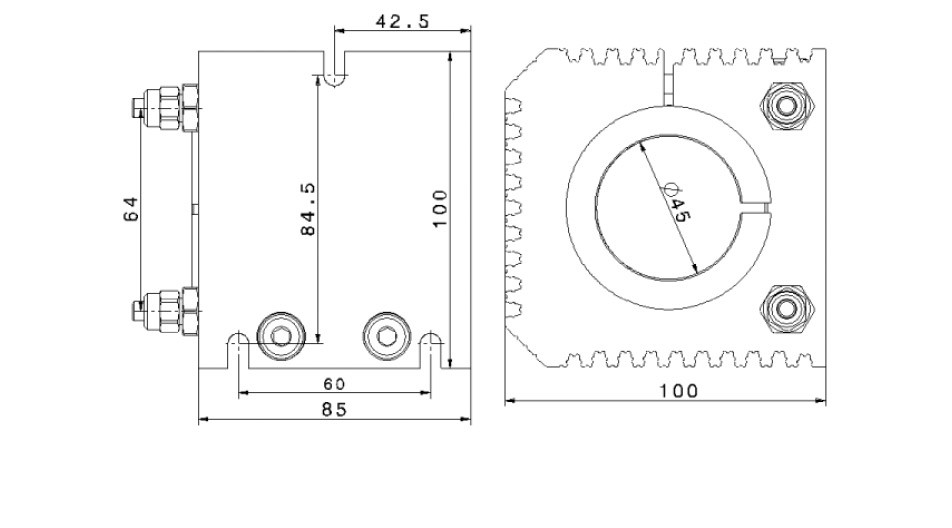

Clamping bracket 4846

Clamping diameter 45 mm

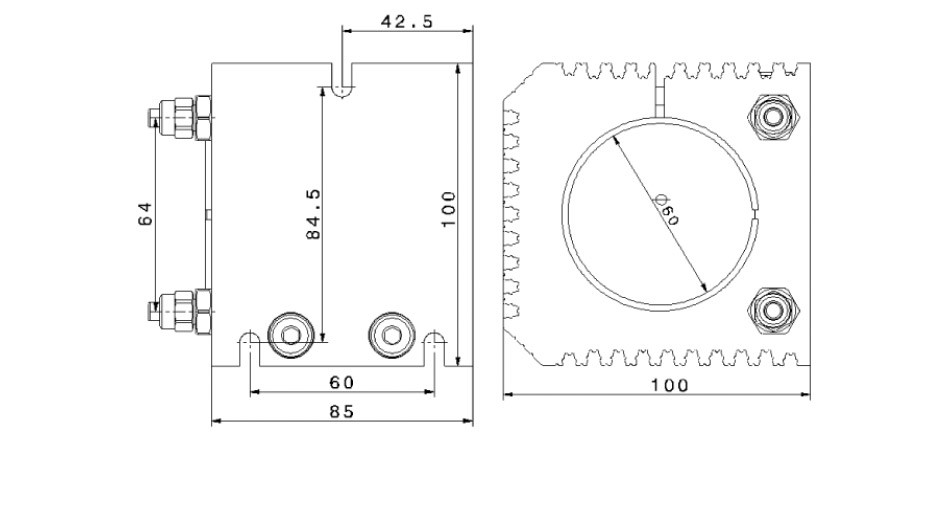

Clamping bracket 4861

Clamping diameter 60 mm

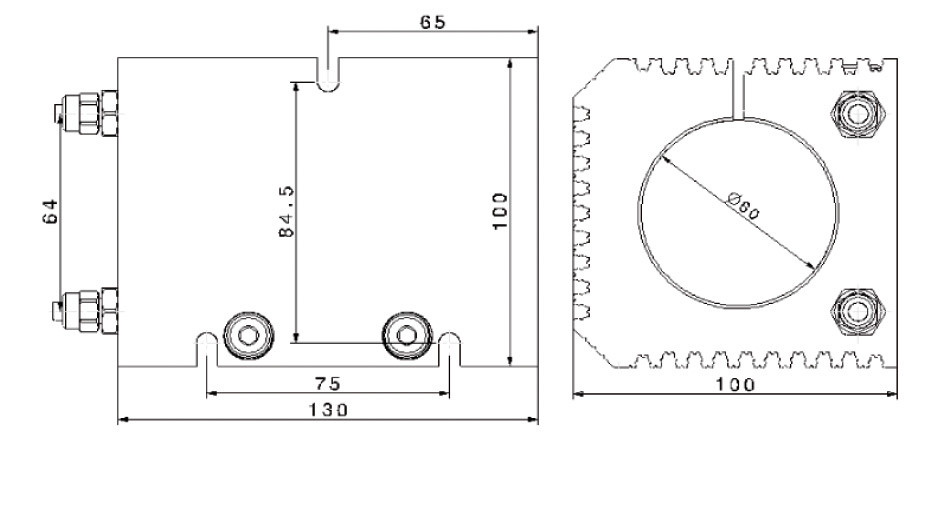

Clamping bracket 4864

Clamping diameter 60 mm

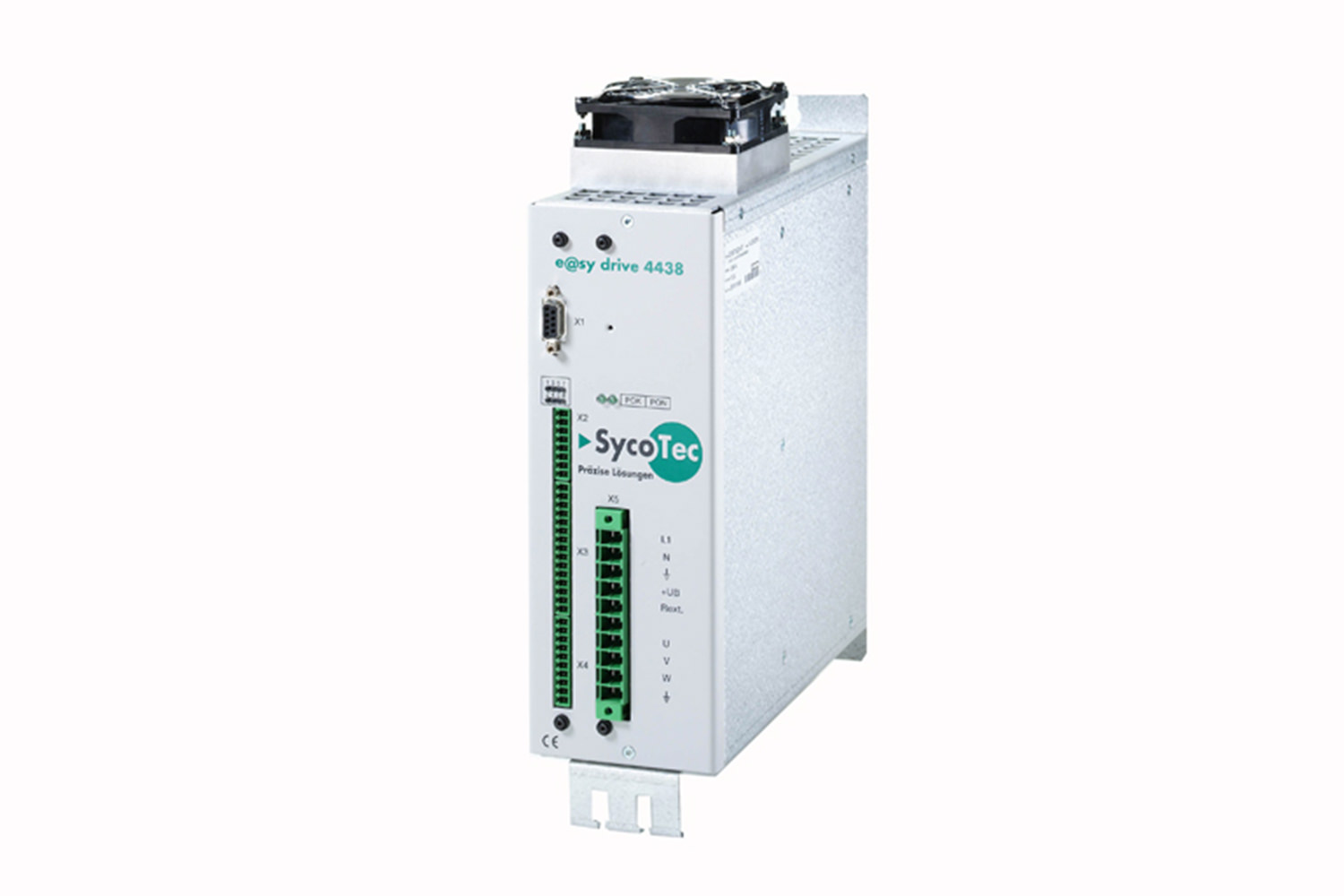

Variadores de alta frecuencia

Fiables y eficientes.

Documentos

Características

Nuestros variadores de alta frecuencia permiten controlar y regular los electro-husillos de alta frecuencia SycoTec de forma fiable y eficiente, tanto en línea como fuera de línea. Nuestros variadores de alta frecuencia convencen por su estructura inteligente, su potencia y fácil configuración mediante software.

Disponemos de variadores extremadamente compactos de baja tensión, y otros más robustos de alta tensión para los electro-husillos síncronos y asíncronos. Numerosas interfaces permiten también una integración sin problemas en las máquinas existentes.

Diversos diseños:

Datos de rendimiento impresionantes:

Funcionamiento conveniente:

Accesorios:

Numerosas interfaces:

Part No.	2001 2287
Input voltage	max. 80 V / 8 A DC
Output voltage	max. 3 x 55 V
Output current	7 A (max. 9 A)
Rated output power	640 VA
Output frequency	AC: 4,000 Hz / max. 240,000 rpm DC: 1,667 Hz / max. 100,000 rpm
Modulation type	Pulse width modulation (PWM)
Brake resistor (internal)	47 Ohm / 10 W
Ambient temperature	5 - 40 °C
Protection category	IP 00
Design	Cabinet version
Weight	0.3 kg
Switching power supply	Switching power supply 2001 3721, (90-264 V AC / 48 V DC / 150 W)
Display	2 x LED
Configuration	Via Computer-Interface (USB/RS232)
Interfaces	3 x Digital output 1 x Analogue output 1 x Digital input 1 x Analogue input
DC Spindle reference	4015 DC (all types), 4025 DC-T* (all types)
AC Spindle reference	4025 AC, 4026 AC, 4033 AC* (all types)
*reduced output power

Part No.	2001 7554
Input voltage	24 – 80 V DC (10 A)
Output voltage	25 V AC at 36 V DC 33 V AC at 48 V DC 48 V AC at 70 V DC
Output current	7 A (max. 10 A)
Rated output power	300 VA at 36 V DC 390 VA at 48 V DC 580 VA at 70 V DC
Output frequency	2,000 Hz / max. 120,000 rpm
Modulation type	SVC, HSPAM/VF
Brake resistor (internal)	22 Ohm / 50 W
Ambient temperature	5 - 40°C
Protection category	IP 00
Design	Cabinet version
Weight	0.5 kg
Switching power supply	E.g. switching power supply 2001 3913 (90-264 V AC / 48 V DC / 150 W)
Logic supply	18-28 V DC (0.5 A)
Display	7 segment display
Configuration	Via Computer-Interface (USB/RS232)
Interfaces	3 x Digital output - 40 V, 0.5 A (low-side) / 0.1 A (high-side) 2 x Digital input 1 x Analogue input 1 x CAN 2 x RS232
DC Spindle reference	4015 DC (all types), 4025 DC* (all types)
AC Spindle reference	4025 AC, 4026 AC, 4033 AC* (all types)
*reduced output power

Part No.	2002 1053 - IP 20 2002 6308 - IP 00
Input voltage	max. 70 V DC / 49 V AC
Output voltage	3 x 45 Veff
Output current	5 Aeff / 7.5 Amax (5s)
Rated output power	300 VA / 450 VAmax (5s)
Output frequency	max. 4,000 Hz
Modulation type	Pulse amplitude modulation (PAM)
Brake resistor (internal)	60 W
Ambient temperature	5 - 40°C
Protection category	IP 20
Design	Cabinet version
EMC	EN 61800-3
Weight	2.4 kg
Power supply	e@syDrive 4428
Display	2 x LED
Configuration	Via USB by user interface ''SycoDrive'' Via micro SD card
Interfaces	7 x Digital input (configurable) 1 x Frequency output 1 x Analogue input 1 x Analogue output 2 x Relay output (configurable) 2 x STO (safe torque off) 1 x CANopen 1 x RS232
DC Spindle reference	4015 DC (all types), 4025 DC-S* (all types), 4025 DC-T* (all types)
AC Spindle reference	4025 AC, 4026 AC, 4033 AC* (all types)
Highlights	• STO (safe torque off) according DIN EN 61800-5-2 • User interface available for PC and Android tablet PC
*reduced output power

Part No.	2002 1054
Input voltage	max. 70 V DC / 49 V AC
Output voltage	3 x 45 Veff
Output current	10 Aeff / 15 Amax (5s)
Rated output power	600 VA / 900 VAmax (5s)
Output frequency	max. 4,000 Hz
Modulation type	Pulse amplitude modulation (PAM)
Brake resistor (internal)	60 W
Ambient temperature	5 - 40°C
Protection category	IP 20
Design	Cabinet version
EMC	EN 61800-3
Weight	2.6 kg
Power supply	e@syDrive® 4429
Display	2 x LED
Configuration	Via USB by user interface ''SycoDrive'' Via micro SD card
Interfaces	7 x Digital input (configurable) 1 x Frequency output 1 x Analogue input 1 x Analogue output 2 x Relay output (configurable) 2 x STO (safe torque off) 1 x CANopen 1 x RS232
DC Spindle reference	4025 DC (all types), 4033 DC* (all types), 4036 DC-T* (all types), 4040 DC-S, 4041 DC-S
AC Spindle reference	4033 AC (all types), 4040 AC, 4041 AC (all types)
Highlights	• STO (safe torque off) according DIN EN 61800-5-2 • User interface available for PC and Android tablet PC
*reduced output power

Part No.	2002 1055
Input voltage	max. 70 V DC / 49 V AC
Output voltage	3 x 45 Veff
Output current	16 Aeff / 24 Amax (5s)
Rated output power	1,000 VA / 1,500 VAmax (5s)
Output frequency	max. 4,000 Hz
Modulation type	Pulse amplitude modulation (PAM)
Brake resistor (internal)	60 W
Ambient temperature	5 - 40°C
Protection category	IP 20
Design	Cabinet version
EMC	EN 61800-3
Weight	2.7 kg
Power supply	e@syDrive® 4429
Display	2 x LED
Configuration	Via USB by user interface ''SycoDrive'' Via micro SD card
Interfaces	7 x Digital input (configurable) 1 x Frequency output 1 x Analogue input 1 x Analogue output 2 x Relay output (configurable) 2 x STO (safe torque off) 1 x CANopen 1 x RS232
DC Spindle reference	4025 DC (all types), 4033 DC (all types), 4036 DC-T (all types), 4040 DC-S, 4041 DC-S
AC Spindle reference	4033 AC (all types), 4040 AC, 4041 AC (all types)
Highlights	• STO (safe torque off) according DIN EN 61800-5-2 • User interface available for PC and Android tablet PC
*reduced output power

Spindle	4015, 4026
Standard sizes	Part No.
Ø 3,0 mm	2002 5260
Ø 3,175 mm (1/8'')	2002 1713
Ø 4,0 mm	2002 5261

Spindle	4025
Standard sizes	Part No.
Ø 3,0 mm	0674 1442
Ø 3,175 mm (1/8'')	0674 1482
Ø 3,175 mm (1/8'')	0674 4561 (with depth stop)
Ø 4,0 mm	0674 2912

Spindle	4033, 4036
Standard sizes	Part No.
Ø 2,35 mm	2001 4753
Ø 3,0 mm	2001 0307
Ø 3,0 mm	2001 4212 (with grub screw)
Ø 3,0 mm	2001 8913 (coated)
Ø 3,0 mm	2001 8916 (with grub screw, coated)
Ø 3,175 mm (1/8'')	2001 0481
Ø 3,175 mm (1/8'')	2001 4213 (with grub screw)
Ø 3,175 mm (1/8'')	2001 8914 (coated)
Ø 3,175 mm (1/8'')	2001 8917 (with grub screw, coated)
Ø 4,0 mm	2000 8184
Ø 4,0 mm	2001 4214 (with grub screw)
Ø 4,0 mm	2001 8915 (coated)
Ø 4,0 mm	2001 8918 (with grub screw, coated)

Spindle	4040, 4041, 4060, 4061
Standard sizes	Part No.
Ø 3,0 mm	0675 1442
Ø 3,175 mm (1/8'')	0675 2012
Ø 3,175 mm (1/8'')	0675 1091 (with O-ring and bolt)
Ø 3,175 mm (1/8'')	1000 8455 (with O-ring and grub screw)
Ø 3,175 mm (1/8'')	1004 0223 (with cap, O-ring and grub screw (shaft Ø 14,9))
Ø 3,175 mm (1/8'')	2002 0838 (with cap, O-ring and grub screw (shaft Ø 14,2))
Ø 4,0 mm	0675 1462
Ø 6,0 mm	0675 1482
Ø 6,0 mm	2000 7290 (with grub screw)
Ø 6,0 mm	2002 1215 (with cap and grub screw (shaft Ø 14,2))
Ø 6,35 mm (1/4'')	0675 1492
